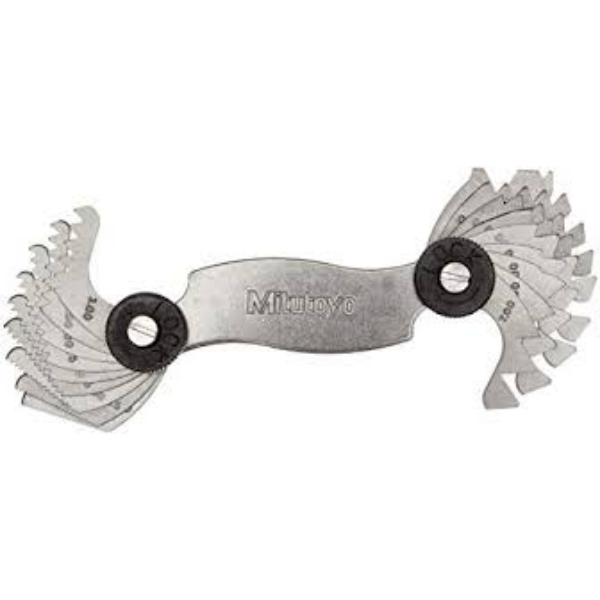

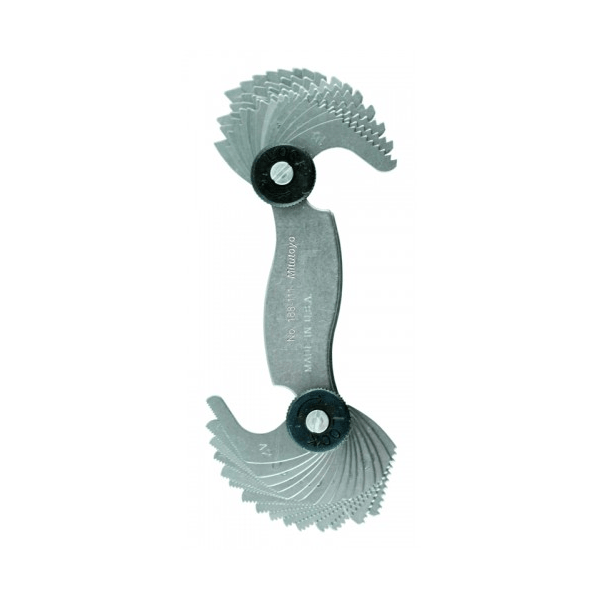

Mitutoyo 188 121 - 0.4-7 mm TPI, 18 Leaves Metric Screw Pitch Gauge 60 Inch


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Mitutoyo 188 121 - 0.4-7 mm TPI, 18 Leaves Metric Screw Pitch Gauge 60 Inch

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

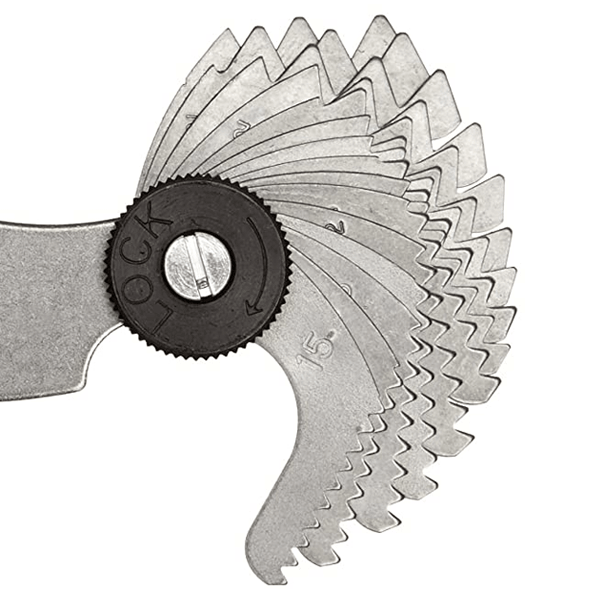

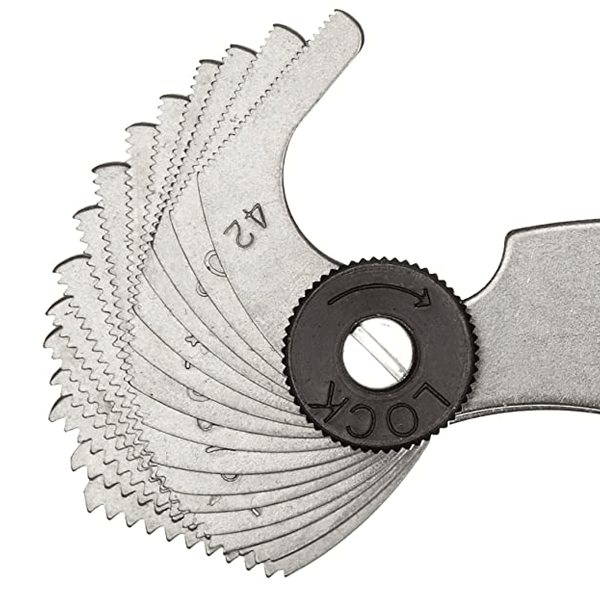

Mitutoyo 0.4-7 mm TPI, 18 leaves metric screw pitch gauge 60 inches is used to measure the pitch or the lead of a screw thread. It allows the users to determine the thread's profile and categorise the thread by shape and pitch. The composition of the gauge is 0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm. The Mitutoyo 18 leaves metric screw pitch gauge product is by Mitutoyo, and it saves time by removing the need of users to measure different threads with different tools or calculate the pitch of threaded items. The Thread pitch size is stamped on each leaf of the gauge.

Product Specifications:

Range: 0.4-7 threads per inch

Model number- 188-121.

Weight: 44 grams

No of Leaves: 18

Colour: Silver

Height: 1 inch

Width: 2.8 inch

Dimensions: 12.7*7.11*2.54 cm

Product Specifications

GENERAL

Brand:
Mitutoyo
Composition of Gauges:
4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12,13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28,30, 32, 34, 36, 38, 40, 42 TPI
Country of Origin:
Japan
Model:
188-121
Number of Levers:
18
Product:
Metric Screw Pitch Gauge
Range:
0.4 to7 mm
Type:
Unified Screw Pitch Gauge (60 Degree)
