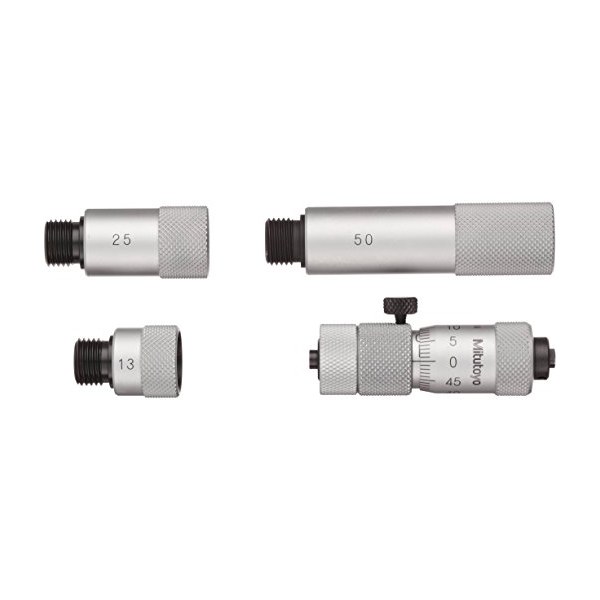

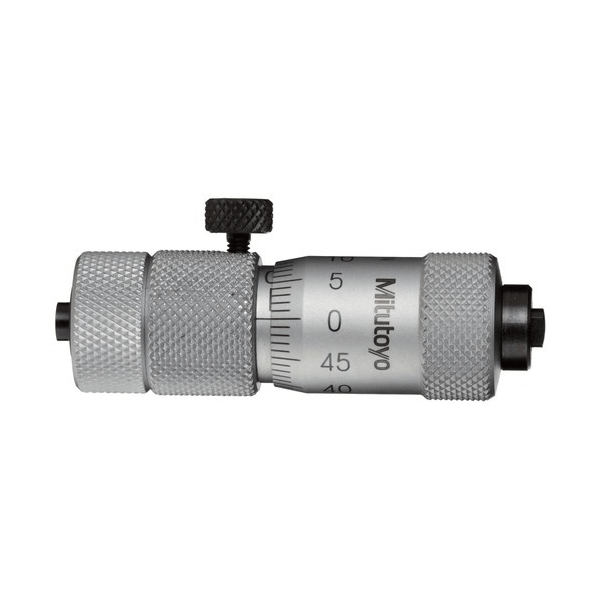

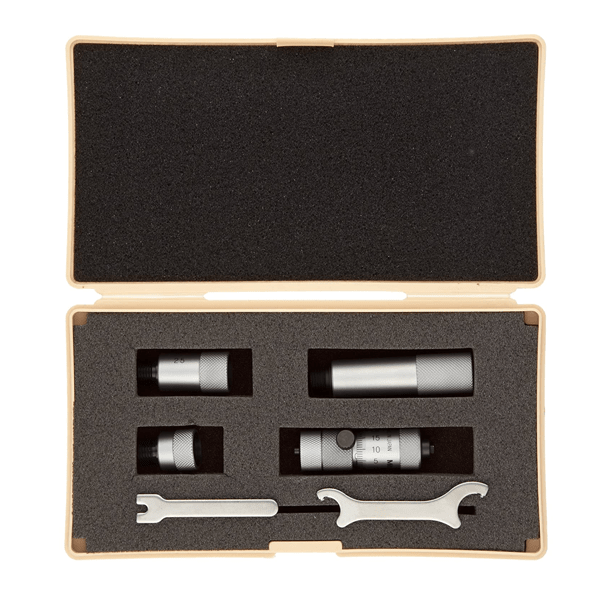

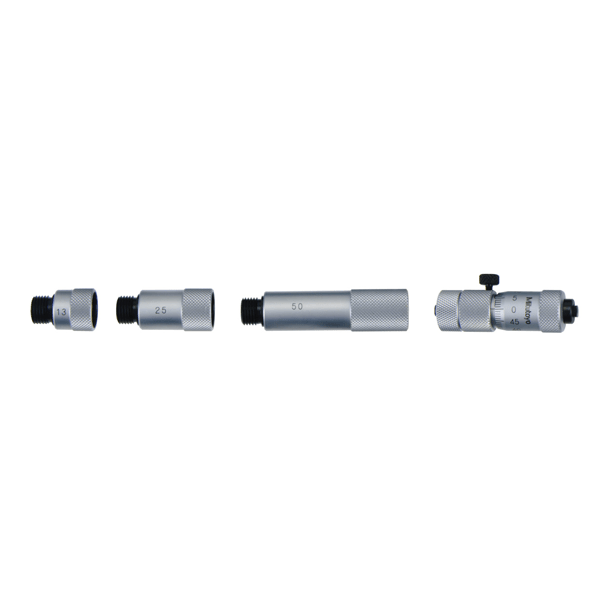

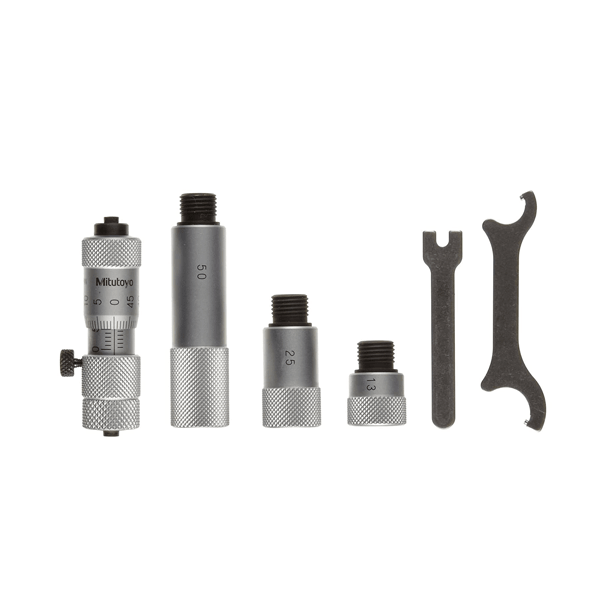

The Mitutoyo - 50-500 mm Extension Pipe Type Tubular Inside Micrometer measures the inside dimensions of parallel surfaces, ring and cylinders etc. The vernier scale present in the 50-500 mm Extension Pipe Type Tubular Inside Micrometer is given in metric units capable of taking precise measurements of inside dimensions. The Extension Pipe Type Tubular Inside Micrometer includes extension rods that are interchangeable for a diversified measurement range. The Tubular Inside Micrometer also consists of solid extension rods, which can be extended upto 6 times.
Product Specifications:
Brand: Mitutoyo
Model: 137 – 203
Product: Tubular Inside Micrometer
Made In: Japan
Type: Extension Pipe Type
Graduation: 0.01 mm
Measuring Range: 50 - 500 mm
Number of Extension Rods: 6
Travel of Micrometer Head: 13 mm
Length: 13 mm, 25 mm, 50 mm (2 pieces), 100 mm, 200 mm
Key Features:
Fine positioning
Precise readings
High durability
