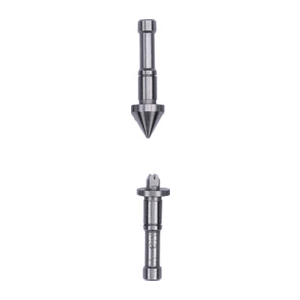

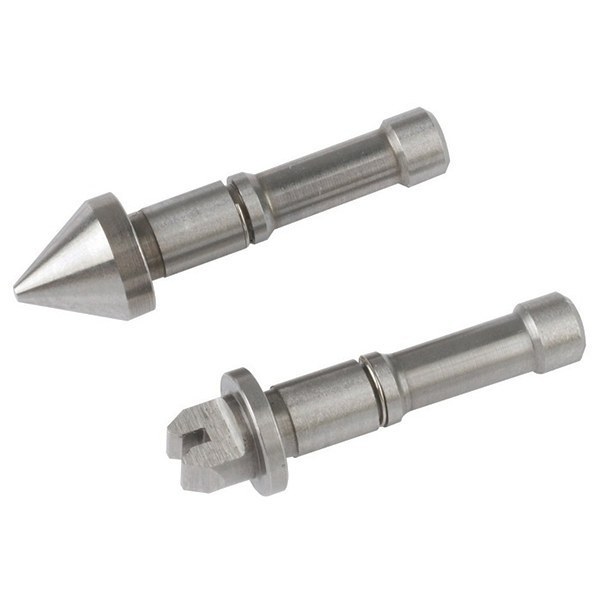

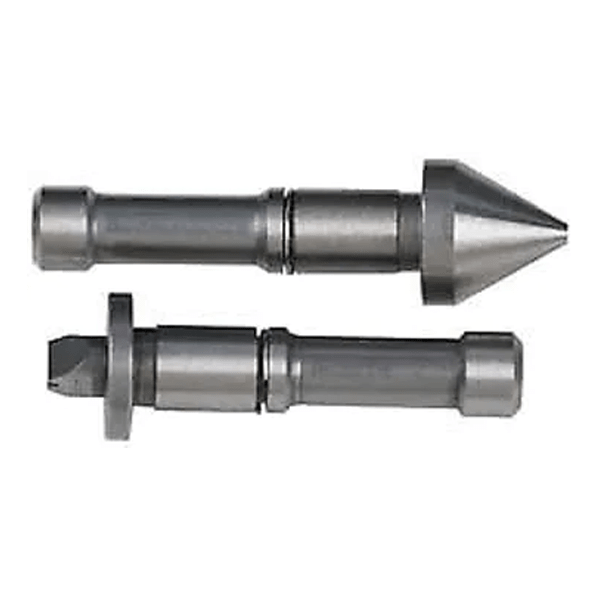

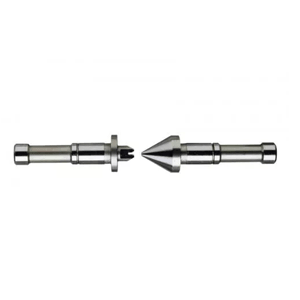

Mitutoyo 5.5 to 7mm Screw Thread/ Pitch Micrometer has 60 degrees pointed spindle and a v-shaped double swiveling anvil to indicate the pitch of thread or any thin wire. When the Micrometers are set at zero, the pitch of both the spindle and anvil coincides. Mitutoyo 126 806 has designed this micrometer in such a way that the ratchet knob and non-rotating spindle provides accurate and repeated measurements up to 200mm with the graduation of 0.1mm. This screw thread/ pitch micrometer falls under the category of Measuring and Layout Tools.
This Testing and Measurement Equipments thimble and sleeve are made up of satin chrome finish and this has a measuring range is 6.35mm with spindle pitch of 0.5mm.
Product Attributes:
Double v-shaped swiveling anvil
60 degree pointed spindle
Measures pin diameter of gears
Ratchet stop
Benefits:
Easy to operate
Handheld device
Supplied with setting standards(except 0-25mm)
Measure pitch diameter.
