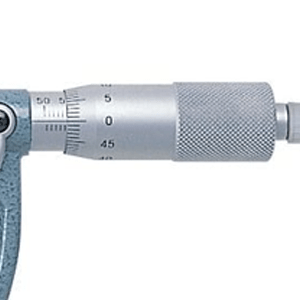

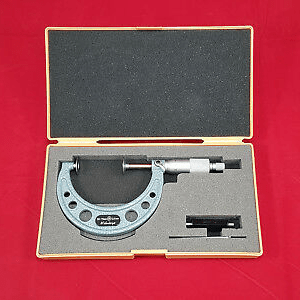

The Mitutoyo - 75-100 mm disk micrometres is equipped with disc-shaped faces with flanges. This design helps in measuring the pitch of gear teeth. The 75-100 mm disk micrometres has a ratchet-stop mechanism. This mechanism helps in providing uniform pressure for precise and recurring measurement. The instrument has a vernier scale in metric units, which helps in taking precise outside diameter measurements. The range of the micrometre is 75 to 100mm, and the graduation is nearly 0.01mm. The weight of the disk micrometre is roughly 375 grams. The disk micrometres are made up of high-quality materials and advanced technologies. It is perfect for professional use due to its high precision performance and accurate measurements.
Product Specification:
Brand: Mitutoyo
Product: Disk Micrometers
Model: 123 104
Size: 75 - 100 mm
Graduation: 0.01mm
Range: 75 - 100mm
Accuracy: ±6µm
Key Features:
Precise measurements
Manufactured from high-quality materials
High durability
Uniform Pressure
