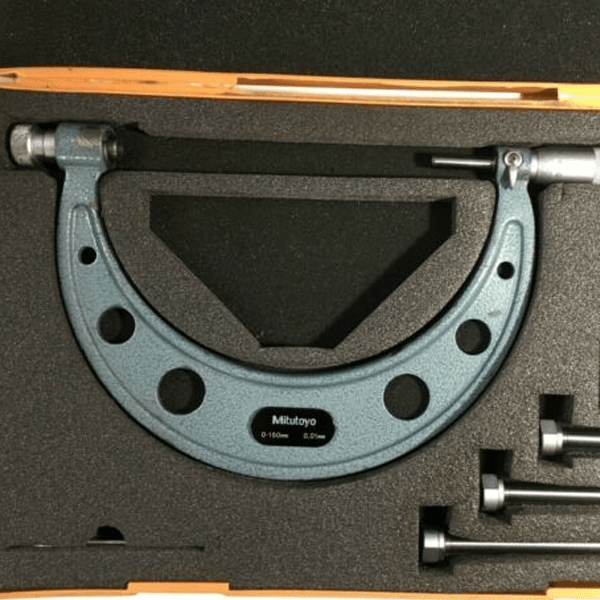

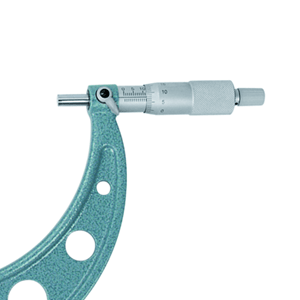

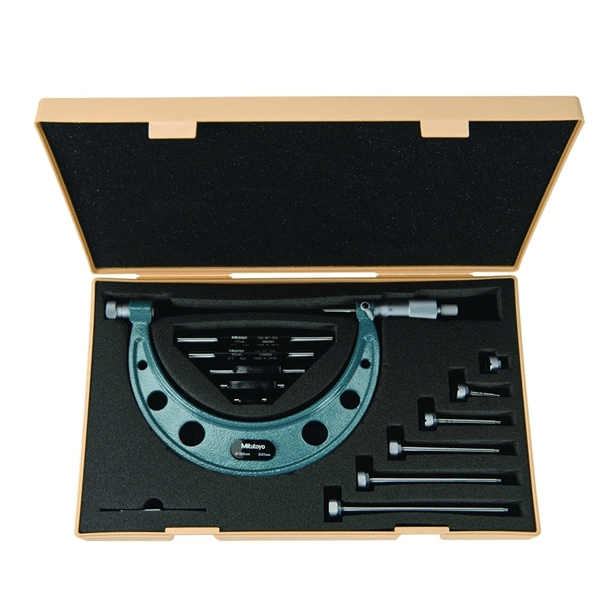

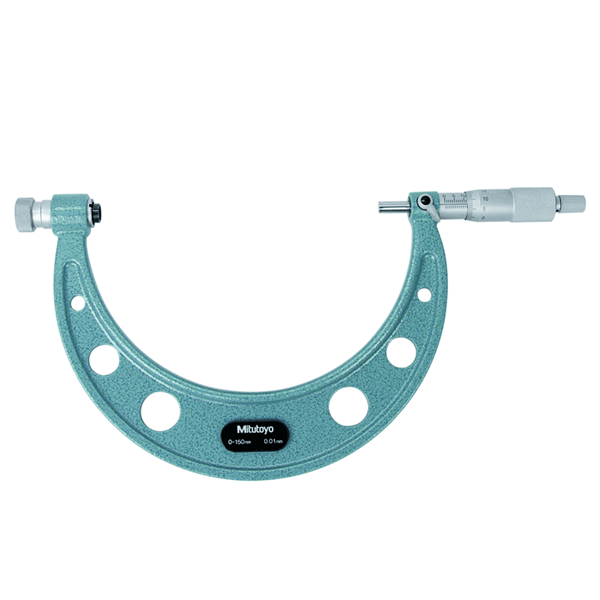

The Mitutoyo 104 139A - 0-100 mm Outside Micrometer with Interchangeable Anvils is a standard quality measuring instrument used to measure the thickness or the outside diameter of small mechanical parts. It is a premium product and a necessary tool used in metalworking factories. The maximum range of this product is 100 mm. It has a carbide tip used for measuring the thickness. The micrometer with interchangeable anvils has a spindle lock of 635 mm and spindle pitch measuring 0.5 mm.
Product specification:
Accuracy- +/- (4+R/75)
Brand- Mitutoyo
Made in- Japan
Flatness- 0.00024 for models up to 12 inch
Graduation- 0.01 mm
Interchange Anvils- 0, 25, 50, 75 mm
Mass- 0.79 kg
Measuring Faces- Carbide Tipped
Model- 104- 139 A
Product- Outside Micrometer
Range- 100 mm
Resolution- 0.01mm
