Midas GD 004 RAEGuard PID - Fixed Gas Detector For Toxic and Flammable Gases


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Midas GD 004 RAEGuard PID - Fixed Gas Detector For Toxic and Flammable Gases

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Description:

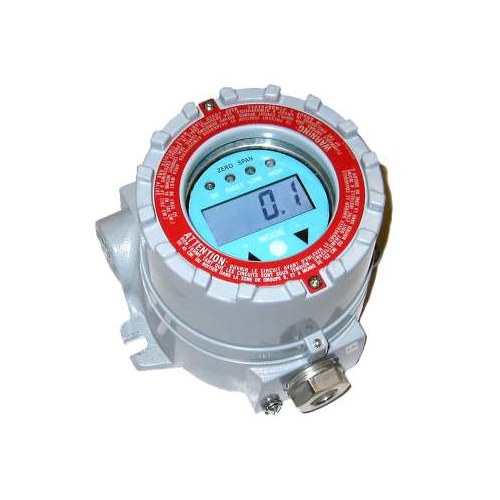

  • This RAEGuard PID is a permanently mounted (fixed) Photoionization Detector (PID) transmitter that operates from a 9 to 36 VDC power source and provides an analog (4-20 mA) signal output in three fullscale ranges of 20 ppm, 100 ppm, or 1,000 ppm isobutylene equivalent. Housed in an explosionproof enclosure, the RAEGuard PID is equipped with a local digital display of the gas concentration and functional keys for performing calibration.

Specification:

  • Operation at 9 to 36V DC. Two dry-contact outputs (<30V, 2A)m.
  • 4-20 mA analog output ranging from 0.1 to 100.0 ppm, or 1 to 1,000 ppm Isobutylen equivalent
  • 4-20 mA analog output ranging from 0.01 to 20.00 ppm isobutylene equivalent for ultra-sensitive version
  • Explosion-proof enclosure for hazardous locations
  • Long-life 10.6 eV Ultraviolet lamp and 3D Sensor
  • Built-in pump with replaceable in-line filter and patented self-cleaning duty cycle operation
  • Local displays with adjustment keys.
  • Magnetic key interface eliminates the need to open explosion-proof housing when making calibration and other minor adjustments

Application:

  • Waste water treatment plants
  • Marine and off-shore oil wells
  • Refineries & petrochemical plants
  • Power plants, Pulp and paper mills
  • Solvent recovery systems
  • Painting and coating operations
  • Air quality
Product Specifications

GENERAL

Brand:
Midas
Country of Origin:
Srilanka/Bangladesh/Pakistan
Model:
RAEGuard PID
Product Code:
GD 004
Product Type:
Fixed Gas Detector For Toxic and Flammable Gases
