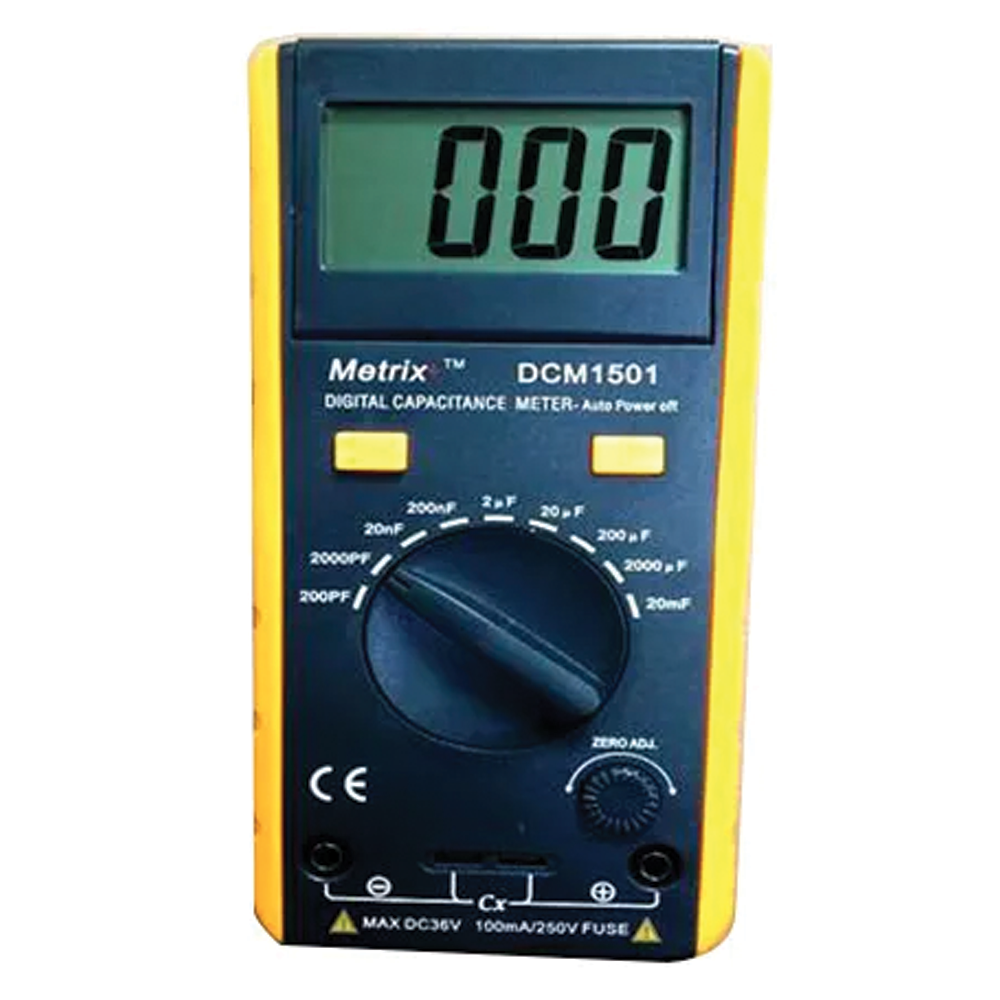

Metrix Plus 9V Digital Capacitance Meter is a metric instrument that is ideal for estimating the capacitance of the discrete capacitors. The 9V Digital Capacitance Meter works on the relationship principle between capacitance and a time constant. The way the Digital Capacitance Meter works is by measuring the rate of storage of charge and returning the value of capacitance on the digital display. The 9V digital capacitance meter also measures other parameters such as leakage, inductance, and the series' net resistance.
Product Specifications:
Brand: Metrix Plus
Dimensions: 186x86x41 mm
Display: Large LCD screen
Display Counts: 1999
Measuring Range: 0-1 pF to 20,000 µF
Model: DCM 1501
Power: 9 V
Storage Temperature: -10 to 50 °Celsius
Test Frequency: 8, 80, 800 Hz,
Weight: 330 grams
Operating Temperature: 0ºC-40ºC, Humidity<80%
Storage Temperature: 10ºC-50ºC
Size: 186 x 86 x 41 mm
