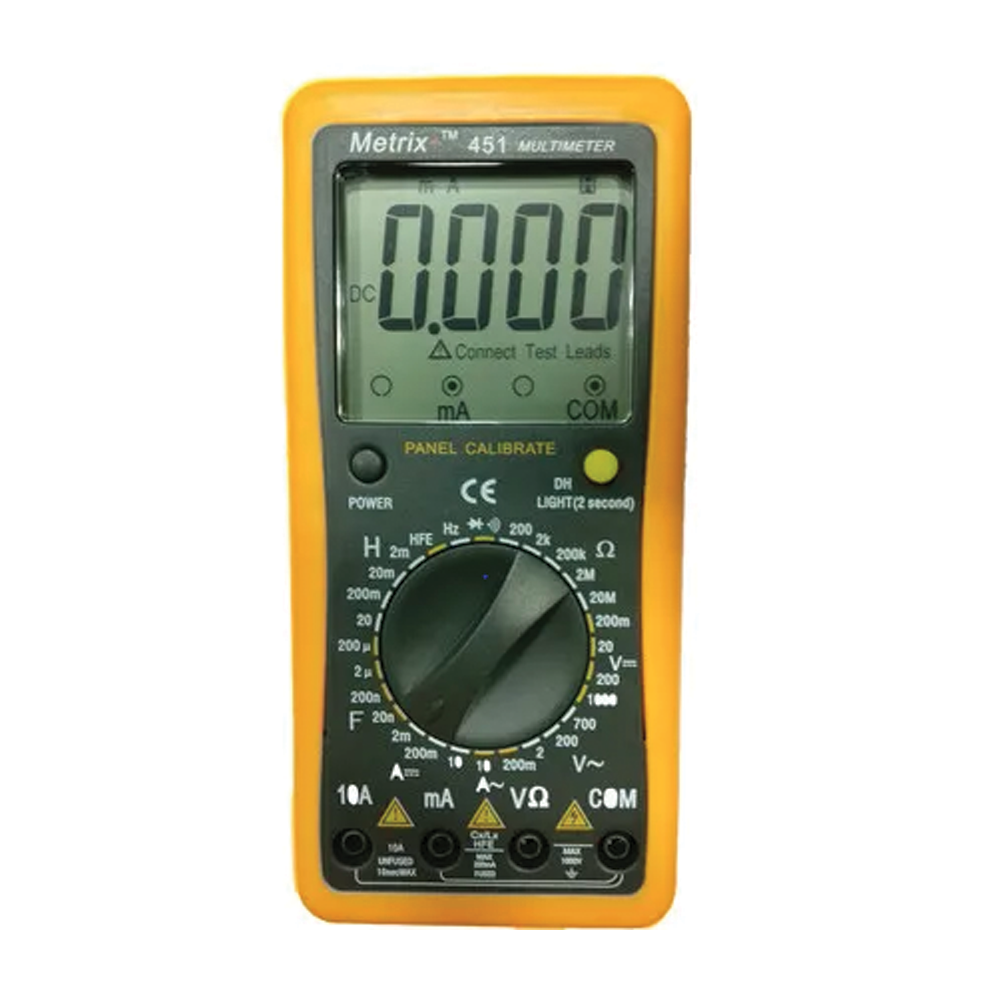

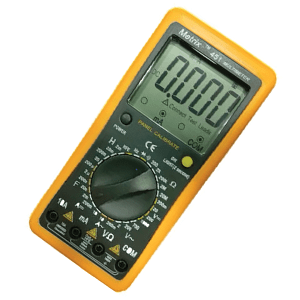

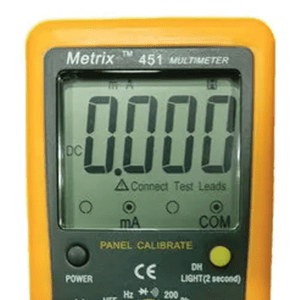

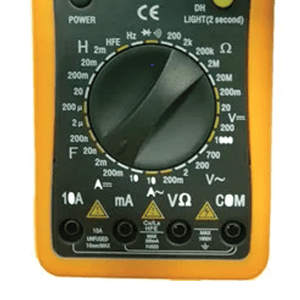

Metrix Plus 1000V Digital LCR Multi Meter is a piece of electronic test equipment that is ideal for measuring the inductance, capacitance, and resistance of an electronic component. The 1000V Digital LCR Multi Meter consists of accessories such as test leads, one spare fuse, an installed 9V battery and Operating Instructions. The Digital LCR Multi Meter contains the 3 ½ inches LCD with backlight technology for reading at darker areas.
Product Specifications:
AC current: 200 mA, 10 A
AC voltage: 2 V, 20 V, 200 V, 700 V
Brand: Metrix Plus
Capacitance: 20 nF, 200 nF, 2 µF, 20 µF, 200 µF
Direct current: 2 mA, 200 mA, 10 A
DC voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V
Frequency: 2 kHz, 20 kHz, 200 kHz
Model: 451
Resistance: 200 Ohms, 2 K Ohms, 20 k Ohms, 200 k Ohms, 2 M Ohms, 20 M Ohms
Operating Temperature: 40 C
Digit Display: 3 ½
