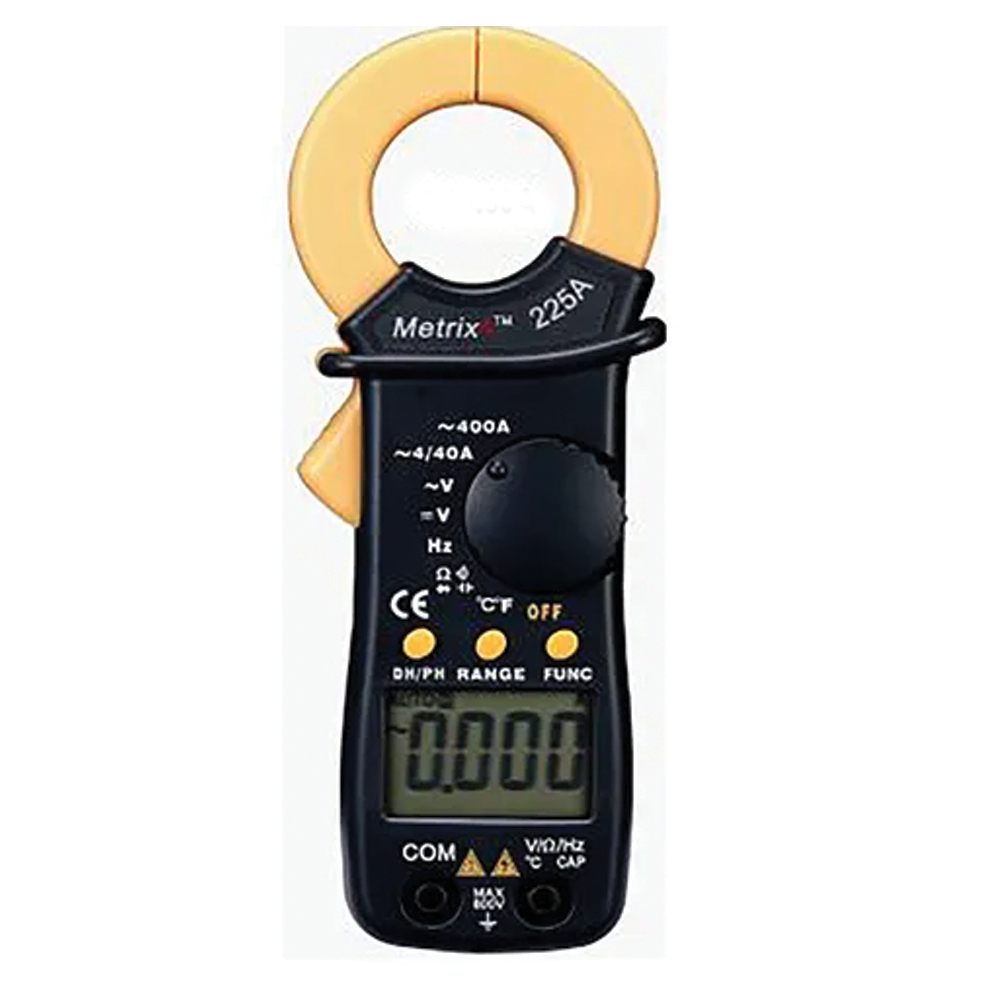

Metrix Plus 400 V Digital ACA Clamp Meter is a metric instrument used to measure the current and voltage in the conductors and electronic circuits. The 400 V Digital ACA Clamp Meter is built using the components such as a clamp, shift and operating buttons, and an LCD with a backlight display. The Digital ACA Clamp Meter is generally attached to the conductor using the clamp, and the current passing through the conductor is measured. The ACA Clamp Meter is ideal for measuring the current and voltage parameters precisely with probes and clamps. The digital ACA clamp meter works on the principle of electromagnetic induction with non-contact AC measurements.
Product Specifications:
AC: 4 A/40/400 A
AC voltage: 4/40/400/600 V
Brand: Metrix Plus
DC voltage: 400 mA/4/40/400/600 V
Dimensions: 165x68x28 mm
Display: 3 3/4 Digits LCD Display
Display Counts: 3999
Jaw Diameter: 30 mm
Model: 225A
Power: 1.5 Vx2 AAA
Resistance Accuracy: 400/4 k/40 k/400 k/4 MOhms
Weight: 180 grams
