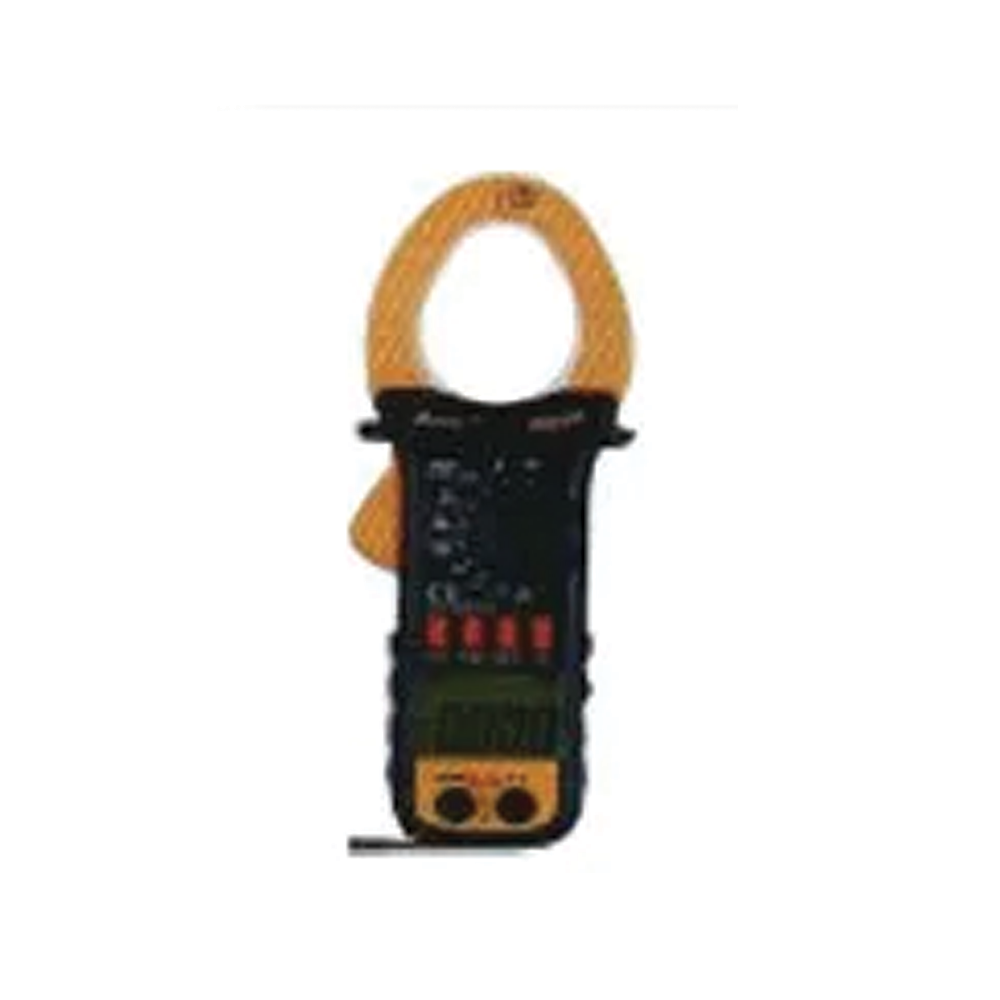

Metrix Plus 1000 V Digital ACA Clamp Meter is a measuring instrument ideal for estimating electrical parameters. The 1000 V Digital ACA Clamp Meter consists of various components such as a clamp, lever, sift button, LCD with backlight display, a hold, a dial, Inrush current button, and input jacks. The Digital ACA Clamp Meter works on the principle of the transformer. The ACA Clamp Meter comprises a copper-winding ferrite core, acting as the secondary winding, and the probes are attached for measuring purposes.
Product Specifications:
AC voltage: 400 mV/4/40/400/700 V
Brand: Metrix Plus
Capacitance: 10 nF/100 nF/1 micro F/10 micro F/100 micro F/1000 micro F
DC voltage: 400 mV/4/40/400/1000 A
Dimensions: 249x89x38 mm
Display: 3 3/4 Digits LCD Display
Display Counts: 3999
Frequency: 100 Hz/1 kHz/10 kHz/100 kHz/1 MHz
Jaw Diameter: 52 mm
Model: 2250T
Power: 1.5 V x 2 AA
Resistance Accuracy: 400/4 k/40 k/400 k/4 mQ
Weight: 360 grams
