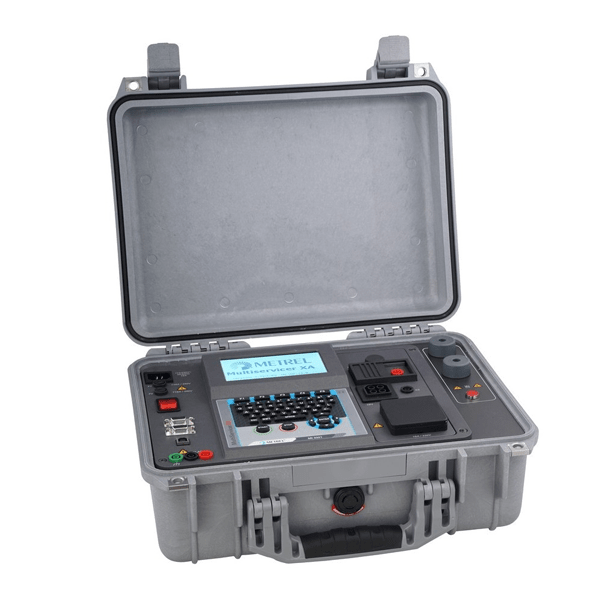

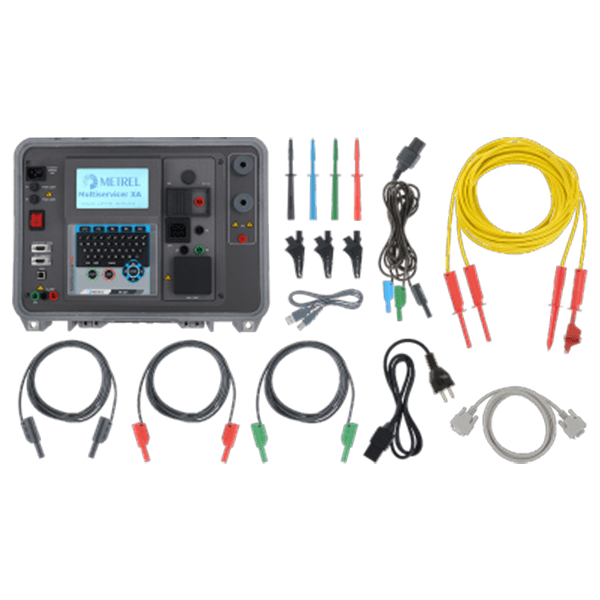

Metrel MI3321 - Multi Servicer XA Standard Set


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metrel MI3321 - Multi Servicer XA Standard Set

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

  • 3 in 1: instrument performs testing of portable appliances (acc. to VDE 0701 0702), machines (acc. to IEC/EN 60204 Ed.5) and switchgears (acc. to IEC/ EN 60439 and the new IEC 61439) including functional and leakage tests for DUTs with nominal power up to 3.5 kW.
  • Multi tasking: up to 18 different measurements can be performed either as a single test or pre programmed test sequences (PAT mode).
  • Automated: automatic testing and PASS / FAIL evaluation of test results according to appropriate standard.
  • Project uploading: previous test data can be uploaded for fast retesting of the object.
  • Scan and test: optional barcoding system and PASS / FAIL barcode label printing make retesting quick and simple.
  • RFID: support for advanced RFID identification system.

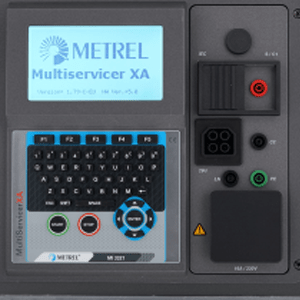

  • User friendly: large LCD screen, full QWERTY keyboard, help screens and warnings make the instrument an extremely easy to use.
  • Fixed appliance tests: ports, leads and optional accessories fully support the testing of fixed machines and appliances while normal socket supports plug in machines and appliances testing.
  • RCD testing: instrument enables testing of parameter of RCDs and portable RCDs.
  • Clamp leakage current measurement: quick measurement of leakage current with current clamps directly on power supply cable without disconnection of appliance from mains.
  • Discharge time test: testing of how long it takes for the machine discharge after power is removed.
  • Withstanding voltage test: instrument performs 2500 VAC, 1890 VAC and 1000 VAC withstanding voltage tests with settable current limit.
  • Trend functionality: test results can be uploaded from PC to the instrument for comparison between old and new test results onsite.
  • Downloadable: up to 6000 test results with measuring parameter can be stored in two level memory and downloaded to the PC with the help of PC SW PATLink PRO.
  • PC SW PATLink PRO included in the standard set enables downloading, viewing, printing of test results and exporting of data to spreadsheet applications.
  • PC SW PATLink PRO Plus enables advanced analysis of test results, upload of structures and data upload to the instrument for on site comparison of old and new results, upload of pre programmed custom autosequences and creation of professional test reports.
Product Specifications

GENERAL

Brand:
Metrel
Dimensions:
345x160x335 mm
Model:
MI3321
Product:
PAT Tester, Machine and CE Multi Tester
Type:
Multi Servicer XA Standard Set
Weight:
8.4 Kg
