Buy Metrel MI3210 - 10 kV, 20 Tera Ohm, 5 mA Insulation Tester Online

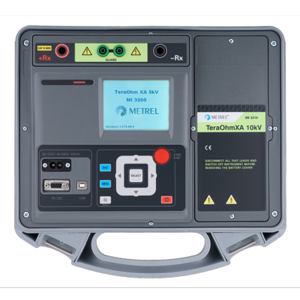

Metrel MI3210 - 10 kV, 20 Tera Ohm, 5 mA Insulation Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metrel MI3210 - 10 kV, 20 Tera Ohm, 5 mA Insulation Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

    • Insulation resistance up to 20 T Ohm.
    • Programmable timer.
    • Capacitance measurement.
    • Charging rate for capacitive load lt 3 s / micro F at 10 kV.
    • Automatic discharge of test object after completion of measurement.
    • Guard terminal.
    • High voltage breakdown detection.
    • Custom defined tests.
    • Auto adjustment function.
    • Measurement results in numerical and graphical form.
    • PC software HVLink PRO for downloading and analysing of the test results and test report printing.
    • Isolated RS232 and USB communication ports, BT interface.
    • High quality accessories including shielded test leads in standard set.
    • High EM interferences protection: Input AC current noise rejection 1 mA infin 600 V and additional averaging of the result 5, 10, 30, 60.
    • CAT IV / 600 V.
    • Mains and rechargeable battery power supply.
Product Specifications

GENERAL

Brand:
Metrel
Current:
5 mA
Dimensions:
360x160x330 mm
Frequency:
10Hz to 500Hz
Measuring Range:
10 k Ohm to 20 T Ohm
Model:
MI3210
Product:
Insulation Tester
Resistance:
20 Tera Ohm
Step Voltage Test:
In 5 steps
Test Voltage Range:
50V to 10kV
Timer:
Max 100 minutes
Voltage:
10 kV
Voltage Steps:
50V to 1kV and 1kV to 10kV
Weight:
6.5 Kg
