Buy Metrel MI3205 - 5 kV, 15 Tera Ohm, 6 mA Insulation Tester Online

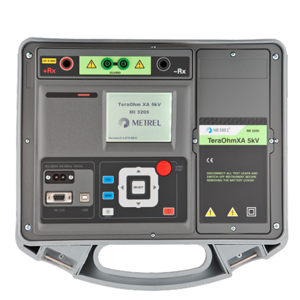

Metrel MI3205 - 5 kV, 15 Tera Ohm, 6 mA Insulation Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metrel MI3205 - 5 kV, 15 Tera Ohm, 6 mA Insulation Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

        • Insulation resistance up to 15 T Ohm.
        • Adjustable test voltage 50 V 5 kV 50 V and 100 V step.
        • Programmable timer.
        • Capacitance measurement.
        • Charging rate for capacitive load 1.5 s / microF at 5 kV.
        • Automatic discharge of test object after completion of measurement.
        • Guard terminal.
        • High voltage breakdown detection.
        • Custom defined tests.
        • Auto adjustment function.
        • Measurement results in numerical and graphical form.
        • PC software HVLink PRO for downloading and analysing of the test results and test report printing.
        • Isolated RS232 and USB communication ports, BT interface.
        • High quality accessories including shielded test leads in standard set.
        • High EM interferences protection: Input AC current noise rejection 1 mA, 300 V and additional averaging of the result 5, 10, 30, 60.
        • CAT IV / 600 V.
        • Increased working nominal altitude to 3000 m.
        • High power Li ion battery pack 14.8V, 4.4Ah.
        • Mains and rechargeable battery power supply.
Product Specifications

GENERAL

Brand:
Metrel
Current:
6 mA
Dimensions:
360x160x330 mm
Maximum Test Voltage:
5000 V
Measurement range:
0 to 15 T Ohm
Measuring accuracy:
5 Percentage
Model:
MI3205
Product:
Insulation Tester
Resistance:
15 Tera Ohm
Test Voltage Accuracy:
5 Percentage
Voltage:
5 kV
Weight:
6.5 Kg
