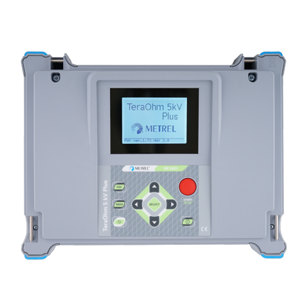

Metrel MI3201 - 5 kV, 10 Tera Ohm, 5 mA Insulation Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

      • Measuring range up to 10 T Ohm.
      • Withstanding voltage: testing of insulation with programmable ramp test voltage from 250 V up to 5 kV and programmable threshold current.
      • Step voltage: insulation resistance measurement with five discrete proportionately set test voltages and programmable timer per step.
      • Automated testing: PI, DD, DAR calculations with automated resistance ranging. All data is displayed during one single measurement.
      • Guard test terminal: for elimination of potential surface leakage currents.
      • Fault finding: fully programmable step voltage and withstanding voltage test functions assist in diagnosing faults in insulation.
      • Graph R t: real time resistance against time graph plotting facility to graphically illustrate the response of a material to an applied test voltage.
      • Built in timer: programmable timer from 1 s up to 10+0 min.
      • Automatic discharge of tested object after test.
      • Fast testing: 5 mA current source for quick charging of capacitive load.
      • Accurate: selectable noise rejection filters and shielded test leads included in a standard set ensure accurate measurement.
      • Safe: high CAT IV / 600 V voltage protection.
      • Built in charger rechargeable batteries: instrument has a built in charger and comes complete with a set of rechargeable NiMH batteries.
Product Specifications

GENERAL

Brand:
Metrel
Current:
5 mA
Dimensions:
310x130x250 mm
Display Type:
LCD
Height:
130 mm
Length:
310 mm
Measuring Range:
5 K Ohm to 10 T Ohm
Minimum Operating Temperature:
-10 Degree C
Model:
MI3201
Product:
Insulation Tester
Resistance:
10 Tera Ohm
Safety Category:
CAT IV 600 V
Test Voltage Range:
250 to 5000 V
Voltage:
5 kV
Weight:
3 Kg
Width:
250 mm
