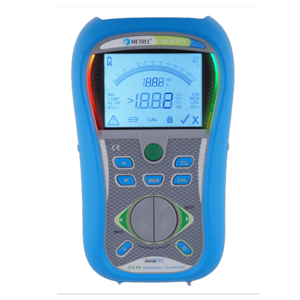

Metrel MI3121H - 2.5 kV, 100 Giga Ohm Insulation Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metrel MI3121H - 2.5 kV, 100 Giga Ohm Insulation Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

    • High measuring range: up to 100 G and Omega.
    • Insulation diagnostics: PI and DAR calculation for determining if the insulation damaged or contaminated.
    • Guard test terminal: for elimination of potential surface leakage currents.
    • Polarity swap: automatic polarity reversal on continuity test.
    • Analogue scale: measuring results are displayed in numeric and analogue representation.
    • Custom limits: if limits are set on insulation or continuity function then large green and red lights of the LEDs will indicate a PASS or FAIL evaluation of test result.
    • Safe: suited for testing on CAT IV installations.
    • Built in charger rechargeable batteries: instrument has a built in charging circuit and comes complete with a set of rechargeable NiMH batteries. Memory: two level memory structure for saving of test results and parameter.
    • Downloadable: downloads via RS232 or USB cable directly to the PC with the help of the PC software EuroLink PRO.
    • Easy to use: large bright LCD display and large buttons enable easy handling of the instrument, even while wearing gloves.
    • Magnetic holder: magnet for fixing instrument on metal surfaces enables hands free operation.
Product Specifications

GENERAL

Brand:
Metrel
Dimensions:
140 x 80 x 230 mm
Display Type:
LCD
Length:
140 mm
Maximum Insulation Resistance Measurement:
30 Giga Ohm
Maximum Test Voltage:
1000 V DC
Minimum Test Voltage:
50 V DC
Model:
MI3121H
Product:
Insulation Tester
Resistance:
100 Giga Ohm
Test Current:
200 mA
Voltage:
2.5 kV
Weight:
0.80 kg
