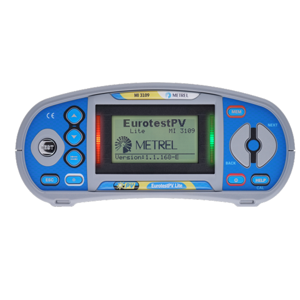

Metrel MI3109 ST - Eurotest PV Lite Standard Set with A1400 and A1427


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metrel MI3109 ST - Eurotest PV Lite Standard Set with A1400 and A1427

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

  • Insulation and I U curve measurements in one instrument: with MI 3109 only one instrument is needed to perform insulation measurements with up to 1000V for proofing the PV installation safety and I U curve measurements needed for evaluation and troubleshooting of PV modules or strings.
  • Autotest: This function is intended to perform a complete set of tests according to EN 62446 on PV modules or strings with pressing only one button.
  • Insulation resistance between positive output and earth.
  • Insulation resistance between negative output and earth.
  • Open circuit voltage.
  • short circuit current.
  • Calculation to STC values: the measured current and voltage values are, according to environment conditions, recalculated to Standard Test Condition values which makes possible to compare the results of different measurements even if they were taken under different test conditions.
  • Efficiency calculations: 2 voltage and 2 current channels for simultaneous AC and DC parameter measurements.
  • PV Remote Unit: Optional unit for simultaneous measurements of solar irradiation and temperature of PV module.
  • Graphical representation of modules I U curve: the I V characteristic of PV module or string is graphically represented on LCD display.
  • Memory: Up to 1800 test results or up to 500 graphical results with timestamp can be stored in internal memory.
  • BT connectivity: it enables BT communication with Android tablets and smart phones via optional BT dongle.
  • Android application: enables advanced data management APP EuroLink PV.
  • PC SW EuroLink PRO enables downloading, uploading, review, analyses and printing of test results.
Product Specifications

GENERAL

Battery:
NiMH batteries
Brand:
Metrel
Dimensions:
230x103x115 mm
Model:
MI3109 ST
Power Supply:
6 x 1.2V AA
Product:
Photovoltaic Tester
Type:
Eurotest PV Lite Standard Set with A1400 and A1427
Weight:
1.3 Kg
