Buy Metrel MI3108 ST - Eurotest PV Standard Set Online

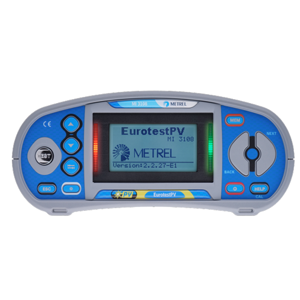

Metrel MI3108 ST - Eurotest PV Standard Set


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metrel MI3108 ST - Eurotest PV Standard Set

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

Photovoltaic installations:

  • Calculation of STC values: the measured current and voltage values are, according to environment conditions, recalculated to Standard Test Condition values which makes possible, to compare the results even if they were taken under different test conditions.
  • Graphical representation: the I V characteristic of PV module or string is graphically represented on LCD display.
  • Power and efficiency measurements: 2 voltage 2 current channels for simultaneous AC DC parameter measurements.
  • PV Remote Unit: Optional unit for simultaneous measurements of solar irradiation and temperature of PV module.

Electrical installations:

  • RCD Auto: Automated RCD testing procedure significantly reduces test time.
  • Trip Lock function: Loop impedance test are performed without tripping the RCD.
  • B type RCD testing: is supported.
  • Earth resistance measurement: instrument supports 3 wire earth resistance testing.
  • Built in fuse tables: for automatic evaluation of the line / loop impedance results.
  • Online voltage monitoring: monitors all 3 voltages in real time.
  • Scope function: real time U/I scope.
  • Harmonics analysis: 1 phase power and energy measurements with up to 11th harmonics analysis is supported.
  • Memory: Up to 1800 test results or up to 500 graphical results with timestamp can be stored in internal memory.
  • BT connectivity: it enables BT communication with Android tablets and smart phones via optional BT dongle.
  • Android application: enables advanced data management APP EuroLink PV and EuroLink Android.
  • PC SW EuroLink PRO enables downloading, uploading, review, analyses and printing of test results.
Product Specifications

GENERAL

Brand:
Metrel
Dimensions:
230x103x115 mm
Model:
MI3108 ST
Product:
Photovoltaic Tester
Type:
Eurotest PV Standard Set
Weight:
1.3 Kg
