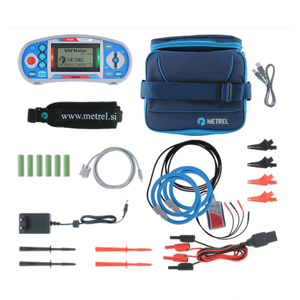

Metrel MI2230F - Power Analyser with Standard Set with Current Clamps


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metrel MI2230F - Power Analyser with Standard Set with Current Clamps

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

  • A portable, compact, handheld multifunction tester.
  • Measure the electrical parameter of single , two , and three phase electrical systems.
  • Supports Aaron systems.
  • Two channel, true RMS voltage up to 600V AC.
  • Two channel, true RMS current up to 3000A AC.
  • Active power.
  • Reactive power.
  • Apparent power.
  • U U angle measurement with a phase diagram.
  • I I angle measurement with a phase diagram.
  • U I angle measurement with a phase diagram.
  • Phase angle measurements are conducted at low currents for accuracy.
  • Measure harmonic distortion.
  • Measure the continuity/ resistance of conductors using a 200mA test current and polarity change.
  • Indicates whether the conductor under investigation has passed or failed the continuity/ resistance test.
  • Simultaneously displays the results for voltage, current phase angles and frequency tests conducted on two or three phase systems.
  • Large, bright LCD display.
  • Internal memory capacity for 1500 measurements.
  • Downloadable tester.
  • Download saved measurements to a PC via a USB or RS 232 cable NOT included and the supplied Metrel EuroLink Software.
  • Large buttons for navigation.
  • Supplied with a durable, lightweight carrying case with a handle.
  • Built in charging circuit.
  • Rechargeable NiMH batteries.
  • Optimised for CAT II 600V environments.
  • Suitable for general electrical system maintenance and commissioning.
  • Conduct protective relay testing.
  • Ideal for electrical machine repair applications.
  • Can be used to monitor power at electrical service entrances.
  • Suitable for measuring phase to phase voltage, single phase current amplitudes and phase angles of meter installations.
  • Can be used for testing and calibrating protective relays of all types when used with a voltage or current source.
  • A versatile, practical and easy to use multifunction tester.
  • Ideal for a multitude of testing, monitoring and calibrating applications.
Product Specifications

GENERAL

Brand:
Metrel
Dimensions:
230x103x115 mm
Model:
MI2230F
Product:
Power Quality Analyser
Type:
Power Analyser with Standard Set with Current Clamps
Weight:
1.0 Kg
