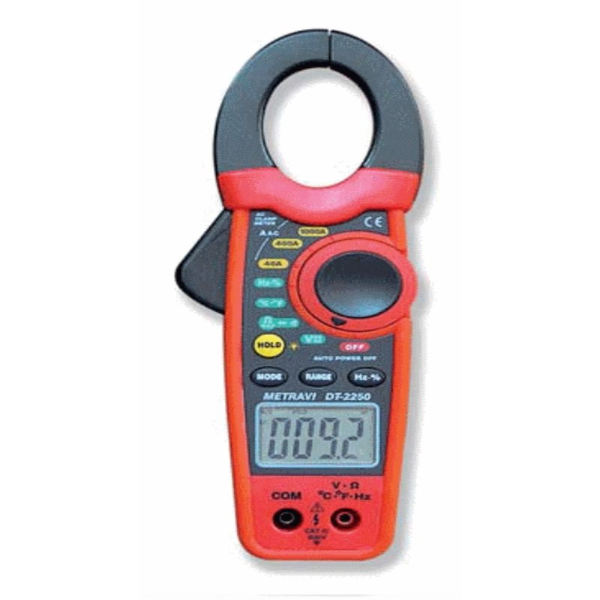

Metravi 600 V Digital Clamp Meter is an electrical test tool that combines a basic digital multimeter with a current sensor. Beneath their plastic mouldings, this 600 V Digital Clamp Meter has hard jaws consisting of ferrite iron and is engineered to detect, concentrate, and measure the magnetic field generated by current as it flows through a conductor. Digital Clamp Meter has clamps that measure current and probes that measure voltage. A hinged jaw integrated into an electrical Clamp Meter allows technicians to clamp the jaws around a wire, cable or other conductors at any point in an electrical system, then measure current in that circuit without disconnecting/de-energising it. Originally created as a single-purpose test tool, modern clamp meters offer more measurement functions, greater accuracy and, in some cases, specialised measurement features.
Product Specifications:
Alternating current: 0-40/400/1000 A
AC voltage: 0-400 mV/4/40/400/600 V
Brand: Metravi
Clamp Jaw Diameter: 30 mm
Country of Origin: India
DC voltage: 0-400 mV/4/40/400/600 V
Model: DT 2250
