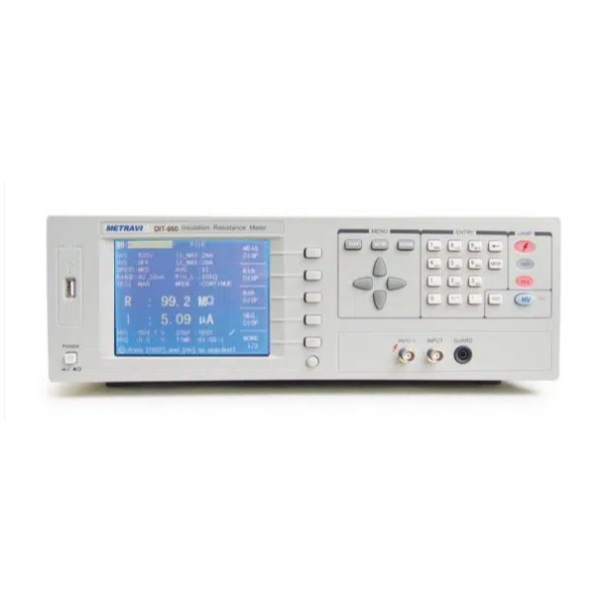

Metravi DIT 950 - 320x240 LCD High Precision Insulation Resistance Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metravi DIT 950 - 320x240 LCD High Precision Insulation Resistance Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Metravi DIT-950 and DIT-951 High Precision IR Testers are intelligent measurement instruments that are used for rapid measurements on insulation resistance properties of electronic parts and components, dielectric materials, equipments, cables, etc.

Large LCD and user friendly menu provide you easier operation. This instrument is especially designed for capacitor insulation resistance test and can achieve rapid measurements through following methods

  • Selectable internal input impedance -If the current is greater than 10nA, only 10k Ohm input impedance can be used; if the current is below 10nA, you can choose 10k Ohm or 1M Ohm impedance to test.
  • With the built-in dual voltage output, it can charge large capacitors. By dual voltage output, it is able to output a pre-charge voltage up to 500V, 200mA. In voltage follow mode, pre-charge voltage follow with the test voltage output and can be finely adjusted. Above features ensure the perfect charge of capacitive materials.
Product Specifications

GENERAL

Accuracy:
2 Percent of readout,or +/-1V
Brand:
Metravi
Country of Origin:
India
Current Limit:
2,25,or 200mA
Discharge Resistance:
2kOhm
Discharge Time:
t = 0.03 x Cx (in ?F), when Vtest falls to 1 Percent of the test level.
Interfaces:
GPIB, (optiona
Measurement Delay:
0 to 1000s programmable
Measurement range:
10kOhm to 50TOhm
Memory Storage:
20 sets of setup values can be stored
Model Number:
DIT 950
Power Consumption:
250W
Power Supply:
90 to 130 V AC(60Hz) or 198 to 260V AC(50HZ)
Programmable charge time:
0 to 1000s
Source Resistance:
200Ohm
Voltage Measurement Range:
10 to 500V, 1V resolution
