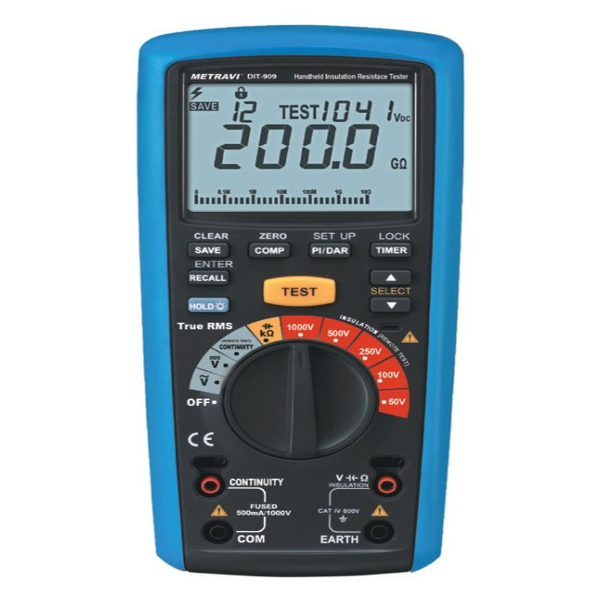

Metravi DIT 909 - 1000 V Digital Insulation Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Metravi DIT 909 - 1000 V Digital Insulation Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Metravi 1000 V Digital Insulation Tester is a digital insulation tester with a remote test probe and a USB PC interface. It measures PI and DAR and tests insulation of wires, transformers, motors, surge arrestors, and generators. The 1000 V Digital Insulation Tester is battery operated and has a timer function set between 1-10 min. It also comes with a comparator function, low battery, and high voltage indication and can record 99 data in its internal memory. The Digital Insulation Tester has insulation resistance test voltage varying from 50-120%. Its DC Voltage is 0 – 600V DC, and AC Voltage is 0 – 600V with Leakage Current measurement from 10 – 2000uA. PRODUCT DESCRIPTION AC voltage: 0 to 600 V AC Brand: Metravi Country of Origin: India Frequency: 45 to 450 Hz Insulation Resistance Range: 0.01 MOhm to 200 ohm Model: DIT 909 General Resistance: 0.01k - 1000k Ohms Test Voltage Range: 50/100/250/500/1000 V

Product Specifications

GENERAL

AC voltage:
0 to 600 V AC
Brand:
Metravi
Country of Origin:
China
DC voltage:
0 to 600 V DC
Frequency:
45 to 450 Hz
Insulation Resistance Range:
0.01 MOhm to 200 GOhm
Model:
DIT 909
Test Voltage Range:
50/100/250/500/1000 V
