Description

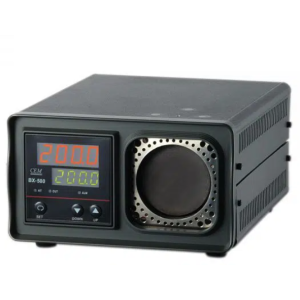

Black Body Source for Calibrating Infrared Thermometers from 50 to 500 Degree C. The B-500 Portable IR Calibrator is used for calibrating long distance Infrared Thermometers, which are designed as handheld and need small calibrations. Whether you’re using in-line or handheld infrared pyrometers, you need a high performance calibration standard to verify accuracy. The portable IR Calibrator provides a stable black body target for calibrating non-contact IR thermometers up to 500 Degree C. The portable IR calibrator features a large temperature-controlled blackbody target with a diameter of 2.25 Inch (57mm), which offers a wide field of view area for optical variations in IR thermometers. With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1 Degree from 50 Degree C to 500 Degree C. For even higher precision, a contact calibration well is located directly behind the blackbody surface. Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of 0.1 Degree C can be achieved.

Product Specifications

GENERAL

Accuracy:
+/-0.5 Degree C At 100 Degree C
Aperture Diameter:
58 mm
Brand:
Metravi
Country of Origin:
India
Heating And Cooling Time:
30 mins to 100 Degree C
Model:
BB500
Power:
220VAC(+/-10 Percent), 1.25A / 110VAC(+/-10 Percent),2.5A
Resolution:
0.1 Degree C /0.1 Degree F
Stability:
+/-0.1 Degree C At 100 Degree C
Target Emissivity:
0.95
Temperature Range:
50 Degree C to 500 Degree C (122 to 932 Degree F)
