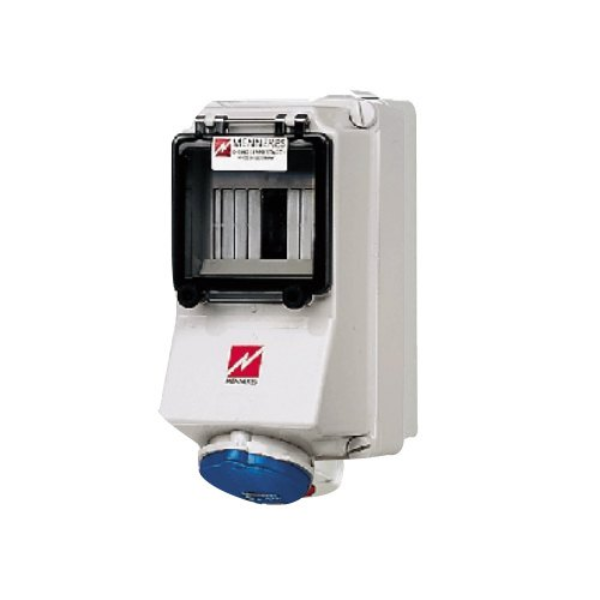

The Mennekes – CEE Wall Mounted Fused Receptacle is a VDE certified Wall Mounted Fused Receptacle. The CEE Wall Mounted Fused Receptacle is provided with a DIN rail with screw terminals for easy mounting. The CEE Wall Mounted Fused Receptacle has a polycarbonate housing that can withstand up to 400 V applications. The Wall Mounted Fused Receptacle is manufactured with an X-Contact sleeve. The Wall Mounted Fused Receptacle can accommodate up to 25 mm diameter cables. The Fused Receptacle is provided with appropriate safety measures, including IP 44 grade protection against water splashes and dust. This Fused Receptacle can be modified with fittings for Neozed, Diazed, circuit-breakers and RCD´s for higher efficiency.
Product Specifications:
Manufactured by: Mennekes
Product Code: 5497
Product: Wall Mounted Fused Receptacle
Mounting: Wall-mounted
Contact type: X-Contact Sleeve
Protection Grade: IP 44
Housing Material: Polycarbonate
Voltage: 400 V maximum
Frequency: 50-60 Hz
Poles: 5
Weight: 1018 grams
Key Features:
CEE approved
