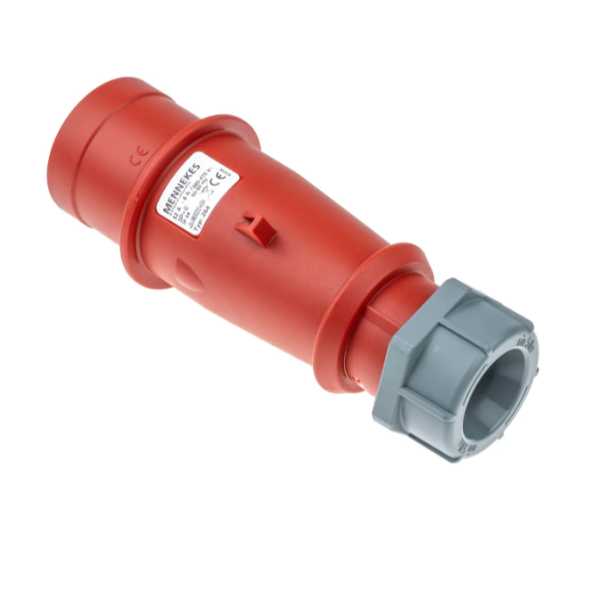

Mennekes264-32ACEE Plug with Screw Terminal industrial cable mount plugs are rugged, dependable, and simple to connect. The 32 A, CEE Plug with Screw Terminal is quickly terminated in the field thanks to open gateway screws that all face in the same direction. When tightened, a tough cable gland at the back of the plug grabs the cable and closes the gasket simultaneously. In CEE Plug Cable trap is prevented by an integrated strain relief. In addition, the company builds the device with robust and high heat resistant contact carriers for superior corrosion resistance. The CEE Plug With Screw Terminal has an ergonomic design and sturdy build. It performs admirably under the most strenuous conditions.
PRODUCT SPECIFICATIONS:
● Brand: Mennekes
● Current Rating: 32.0A
● Plug/Socket: Plug
● Pole Format: 4P
● Voltage Rating: 400 V
● Mounting Type: Cable Mount
● IP Rating: IP44
● Colour: Red
● Gender: Male
● Body Orientation: Straight
● Termination Method: Series
● Screw Terminal: AM-TOP
● Cable CSA: 2.5 6mm2²
● Minimum Operating Temperature: -25
● Maximum Operating Temperature: +55°C
● Low Voltage: No
● Country of Origin: DE
KEY FEATURES:
● Easy to operate
● Protects your appliances by acting as a circuit breaker.
● It connects and disconnects power to appliances.
● Ensures maximum safety because naked wires are not safe to use.
● Long-lasting
