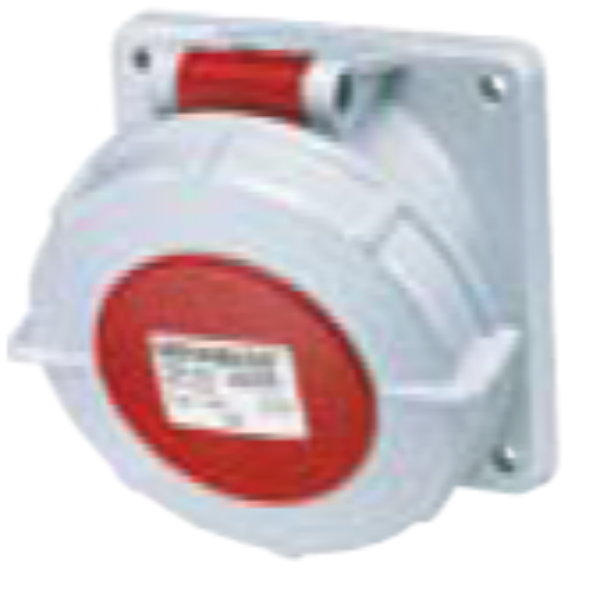

Mennkes 1485 - 16A, CEE Panel Mounted 20 Degree Inclination Receptacle


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Mennkes 1485 - 16A, CEE Panel Mounted 20 Degree Inclination Receptacle

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Mennekes 1485- 16A, CEE Panel Mounted 20 Degree Inclination Receptacle with standard contacts and screw depots. CEE Panel Mounted 20 Degree Inclination Receptacle also has an optional auxiliary contact. Mennekes CEE panel mount receptacle with a 20-degree Inclination allows you to plug connectors directly into the wall of a device or into a free-hanging connector for in-field installation. The panel Mounted 20 Degree Inclination Receptacle can be mounted practically anywhere on the product chassis and is ideal for goods that require IP-rated protection from dust or water penetration.

PRODUCT SPECIFICATIONS:

● Material: Plastic

● Identification colour: Red

● Degree of protection (IP): IP67

● Angle of plug: Connection system

● Angled: Screwed terminal

● Flange size vertical: 100 mm

● Voltage acc. EN 60309-2: 400 V (50+60 Hz) red

● Number of poles: 5

● Clock hour position: 6h

● Drill hole distance vertical: 85 mm

● RAL-number: 3013

● IEC-amperage: 16 A

● Drill hole distance horizontal: 77 mm

● Military model: No

● Flange size horizontal: 92 mm

● Amperage acc. UL/CSA (for UL version): 20 A

KEY FEATURES:

● Waterproof

● Tamper Proof

● Reduce the impact of strain

Product Specifications

GENERAL

Brand:
Mennkes
Model:
1485
No. of Poles:
3+N+E
Product:
CEE Panel Mounted 20 Degree Inclination Receptacle
Protection Type:
IP 67
Rating Amp:
16
Voltage:
400 V, 50 and 60 Hz
