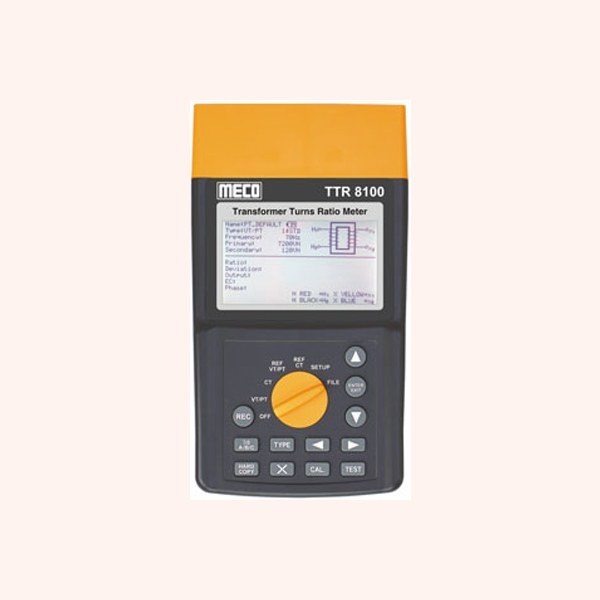

MECO TTR 8100 - 0.8 to 2000 CTR Transformer Turns Ratio


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO TTR 8100 - 0.8 to 2000 CTR Transformer Turns Ratio

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features :

  • Measurement of 1 Φ and 3 Φ Transformer VT / CT Turns Ratio
  • VT / PT Ratio 0.8 ~ 2000
  • Graphical and Literal Illustration of Measurements and connections with Large Back - Lighted Dot Matrix 240 x 128 LCD
  • Displays Turns Ratio, Deviation, Secondary Output, Excitation Voltage and Current, Phase Angle and Nameplate. Transformer VT / CT Values in one page for easy quality interpretation
  • Check for Live Test Points, Short Circuit, Open Circuit and Reverse Polarity before each measurement
  • Store 4096 Files of Transofrmer Nameplate Values VT / PT / CT 1 Φ / 3Φ, Test Frequency, Primary and Secondary Voltages or Ratio, RCF) and Measuring Data.
  • Ten Test Frquencies (50 ~ 400 Hz)
  • 9 Types of 3 Φ Winding Connection pre - installed
  • Wireless Blue Tooth Communication with PC
  • Select Filter to Remove Field noise (Slow, Normal, Fast)
  • Record with Date and Time Stamp
  • Powerful Lithium Battery with built - in Charging Circuit
  • User Programmable RCF ( Reference Correction Factor, 0.99 ~ 1.01) to Correct Accuracy within 1% Error
  • Friendly File System for Easy On - Site Data Retrieval and Nameplate Values Management

Edited with the free online HTML editor powered by 4html.net

Product Specifications

GENERAL

Battery Charger:
Universal Input (90 to 264 Vrms Input)
Battery Life:
10Hrs of Continuous Operation
Brand:
MECO
Charging Time:
<4Hrs
Country of Origin:
India
CTR (Auto Ranging):
0.8000 to 2000 CT
Data Storage:
4096 Files Each (VTM, CTM, VTR, CTR, BMP)
Display:
5 Inch Large Dot Matrix LCD Display With Backlight
Exitation Current Display:
0 to 1000 mA, Accuracy +/-2 Percent mA
Exitation Frequency:
50, 55, 60, 70, 100, 120, 200, 240, 300, 400 Hz
Exitation Signal:
VT/PT Mode 34 Vrms Max, CT Mode: Auto Mode 0 to 1A, 0.1 to 20 Vrms
Measurement Method:
ANSI/IEEE C57.12.90 and IEC 600076.1
Model:
TTR 8100
Power Source:
Rechargeable Lithium Battery, 3400mAh
Product Type:
Transformer Turns Ratio Meter With PC Communication Software
Standard Accessory:
Test Leads x 1 Pair, Alligator Clips x 4, Rechargeable Lithium Battery x 1, Instruction Manual x 1, AC Adaptor x 1, Power Cord x 1, Software CD and Manual x 1, Carrying Bag x 1
