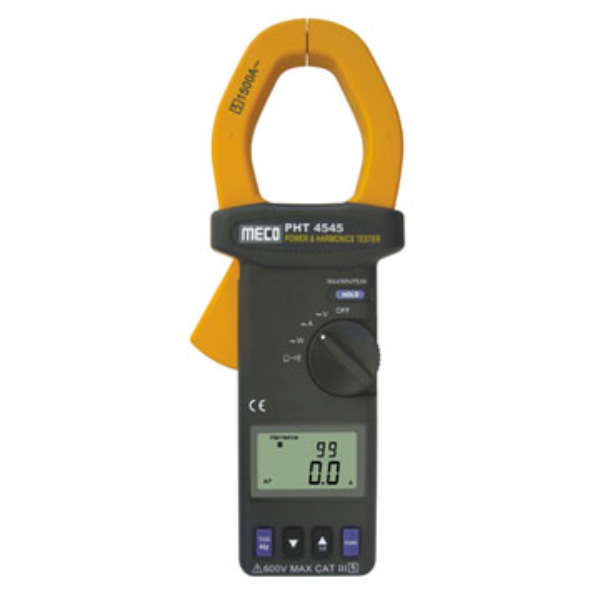

MECO PHT 4545 - 55 mm AC Clamp On TRMS Power and Harmonics Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO PHT 4545 - 55 mm AC Clamp On TRMS Power and Harmonics Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features :

POWER ANALYSIS :

  • W, KW, HP, VA, KVA, VAR, KVAR
  • PF, Phase Angle (Phi;)
  • Energy (WH, KWH)
  • Balanced 3 Phi Power Quality
  • Balanced 3 Phi Sequence
  • Programmable CT Ratio (1 to 250)
  • Dual Displays (W + PF, VA + KVAR...)
  • Active power in HP
  • Resistance and Continuity with Beeper

HARMONICS ANALYSIS :

  • True RMS value (V and A) at 0.5 Percent basic accuracy
  • 1500 A AC
  • Harmonics Analysis (V and A) to the 99th Order in Percent and in magnitude
  • Better Understanding of High Frequency Harmonic Analysis (up to 5/6/KHz)
  • Non-interrupted Harmonic Analysis
  • Analysis of Total Harmonic Distortion(%THD-F)
  • Analysis of Crest Factor (C.F.)
  • Fast Peak Function (33Micros for 60Hz and 39Micros for 50Hz)
  • Max, Min and Data Hold Function
Product Specifications

GENERAL

Accessories:
Test Leads, Carry Bag, Users Manual, Batteries 1.5V x 2 (Installed)
Battery Type:
1.5V SUM - 3x2
Brand:
MECO
Country of Origin:
India
Dimensions:
271x112x46 mm
Display:
4 + 4 Digits LCD
Jaw Opening:
Cable Dia 55mm (approx.), 64x24 mm (Bus Bar)
Manufacturer Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Model:
PHT 4545
Packers Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Product Type:
Power and Harmonics Tester
Weight:
650 gms (approx.) Battery Included
