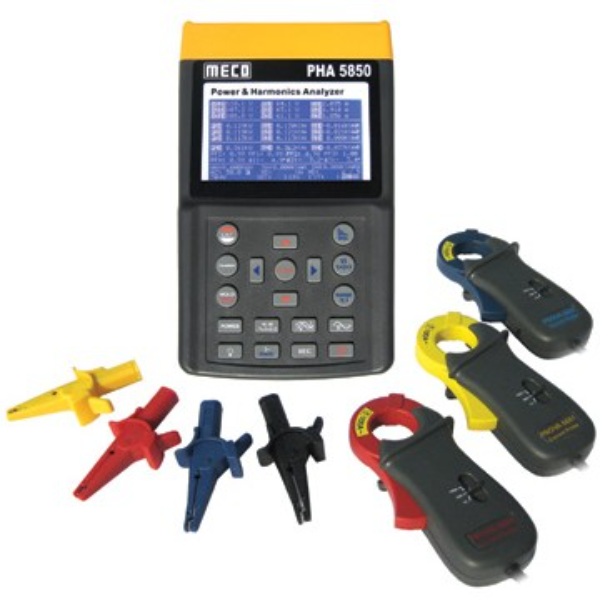

MECO PHA 5850C - 23 mm Power and Harmonics Analyser


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO PHA 5850C - 23 mm Power and Harmonics Analyser

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features :

  • Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
  • Display of 35 Parameters in one screen (3P4W)
  • Programmable CT (1 to 600) and PT (1 to 3000) Ratios
  • RMS, PEAK Value and Crest Factor
  • True RMS value, Active Power, Apparent and Reactive Power ( KVA, KVAR)
  • Power Factor, Phase Angle (Phi) and Energy (WH, KWH, KVARH, PFH)
  • Average / Maximum Demand (KW, MW, KVA, MVA) with Programmable Period
  • Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample / Period)
  • Analysis of total Harmonics Distortion (THD-F)
  • Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL and OUTAGE)
  • Built in timer and Calender for Data Logging
  • 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
  • Optical Isolated RS-232C - USB Interface
  • Calculated Unbalanced Current through Neutral line
  • Graphic Phasor Diagram
  • Facility to retrieve Power Data and Harmonics on Meter Screen
  • Software for easy download of Recorded Data and Transient events
  • Graphic Phasor Diagram
  • Facility to retrieve Power Data and Harmonics on Meter Screen
  • Software for easy download of Recorded Data and Transient events
Product Specifications

GENERAL

Brand:
MECO
Cable Diameter:
14 mm
Cable Length From Box to Output:
1700 mm
Cable Length From Probe:
1700 mm
Connector Diameter:
23 mm
Country of Origin:
India
Manufacturer Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Minimum Bending Diameter:
35 mm
Model:
PHA 5850C
Packers Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Probe Length:
24 Inch/ 610mm (approx.)
Product Type:
Power and Harmonics Tester
Range:
300 / 3000A AC
