Buy MECO MC907 - 0 to 500 M Ohms, 1000V Analog Insulation Tester Online

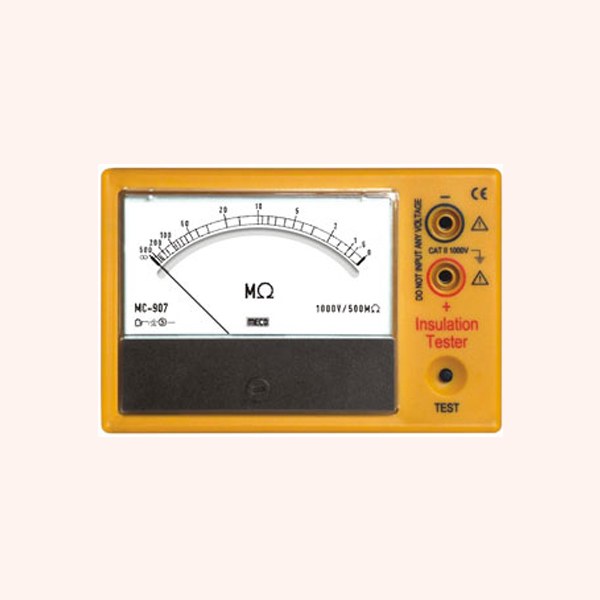

MECO MC907 - 0 to 500 M Ohms, 1000V Analog Insulation Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO MC907 - 0 to 500 M Ohms, 1000V Analog Insulation Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Suitable for both industrial and domestic use and manufactured by one of the top brands of Testing and Measuring Equipment, MECO MC907 is one of the best products available in the market. The Insulation Tester has an accuracy of 5 %, can measure resistance up to 100 ohms, and can operate under 50-degrees Celsius. MECO Analog Insulation Tester comes with an alligator test leads, polycarbonate cover, and 1.5V batteries. In addition to that, this Electrical Power Testing tool can test voltage up to 500V and has a 3.5KV at 50 Hz for a minute dielectric strength.

Product Attributes:
Accuracy- 5%
(MC-900BA) Series battery
Scale length -80 mm
Resin yellow case with a polycarbonate cover

Benefits:
Suitable for both industrial and domestic use
Can be used for communication cables
It can operate within 50-degree Celsius
Available in the market in different voltage and ohm ranges

Product Specifications

GENERAL

Accuracy:
+/- 5 Percentage of Indicated Value at 27 Degree C +/-5 Degree C
Brand:
MECO
Country of Origin:
India
Dielectric Strength:
3.5 KV At 50 Hz For 1 Min Between Internal Terminal And Case
Dimensions:
144.5x95x72.5mm (approx.)
Insulation Resistance:
More than 50 M Ohm at 500V Between Circuit and Case
Low Battery:
When Battery Voltage Drops Below Operating Voltage, Pointer Cannot Reach Zero After Shorting The Output Terminals
Model:
MC 907
Operating temperature:
0 Degree to 50 Degree C
Power:
9V (6 x 1.5V AA) Battery
Product Type:
Analog Insulation Tester
Relative humidity:
80 Percentage Maximum
Resistance:
0 - 500 M Ohms
Standard Accessories:
Pair of Crocodile / Alligator Test Leads (Red And Black) x 1, Carrying Case x 1, 1.5V AA Batteries x 6 (Fitted - In)
Standards:
IS 10656 - 1983, IEC 61010, Installation Catagory II, 1000V Phase Earth
Storage Temperature:
- 10 Degree C to 60 Degree C
Test Voltage DC:
1000V
Weight:
438.6 Grams Including Battery (approx.)
