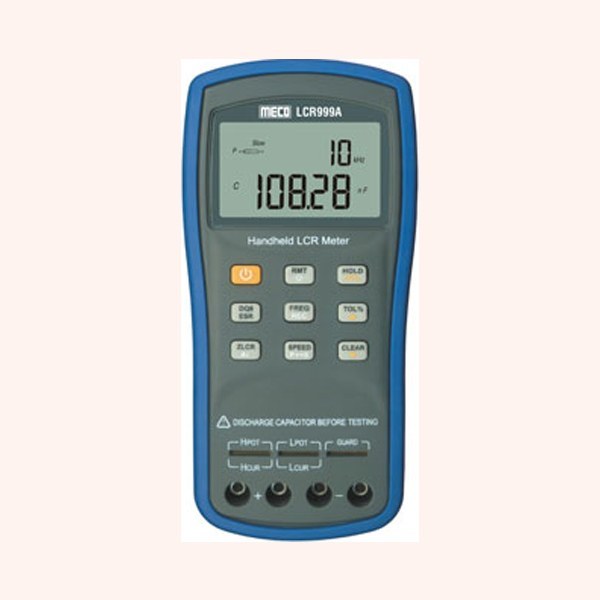

MECO LCR 999A - 0.1A, 63V LCR Meter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO LCR 999A - 0.1A, 63V LCR Meter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features :

  • Basic measurement accuracy 0.1% and speed upto 10 meas / sec.
  • Large LCD display with bright white backlight.
  • Ultra low power consumption, battery powered for 24 hours of continuous use.
  • Automatic identification function (Ai).
  • 9V battery & External power supply
  • Automatic correction function with data hold, max. / min. / average recording.
  • Utility function configuration & current setup recovery after power off.
  • Standard Mini-USB interface, SCPI compatible
  • Auto power Off
  • Percentage display & 4 tolerance comparator : 1%,5%,10% & 20%
  • Constant output impedance : 100 ohm

Application:

  • Field maintenance test & external carrying test.
  • Fixation point on production line or mobile checkout.
  • Warehouse & real time spot or batch inspection.
  • Flow inspect and in field measurements.

HTML code with the new free online tool hosted by 4html.net.

Product Specifications

GENERAL

AC Adaptor:
Input : 220V (1 +/- 10 Percentage, 50Hz (1 +/- 5 Percentage) Output 12V DC
Battery Capacity Indication:
Real Time Disaplay on LCD
Battery Model:
7.2V Ni - MH 600mAH Rechargable Battery
Brand:
MECO
Corrections:
Short and Open
Country of Origin:
India
Dimensions:
193x93x48 mm (approx.)
Equivalent Mode:
Manual /Auto, Ranging Mode - Auto
Function:
Primary Parameters - L/C/R/Z, Secondary Parameters - D/Q/O/ESR
Input Protection Fuse:
0.1A, 63V
Measurement Parameters:
Series /Parallel
Model:
LCR 999A
Product Type:
LCR Meter
Safety and EMC compliance:
IEC 61010 - 1 : 2001, IEC 61326 - 2 - 1 : 2005
Standard Accessories:
Manual, Short Circuit Plate x 1, 7.2V Ni MH Rechargeable Battery (installed) x 1, 12V/300mA AC Adapter x 1, 5 Terminal Kelvin Test Leads x 1, Optional : SMD 4 Terminal Kelvin Test Tweezers x 1, Banana Plugs - Crocodile Clip Test Leads x 1, Mini USB Commun
Test Terminals:
2, 4 and 5
Weight:
395 Grams (approx.)
