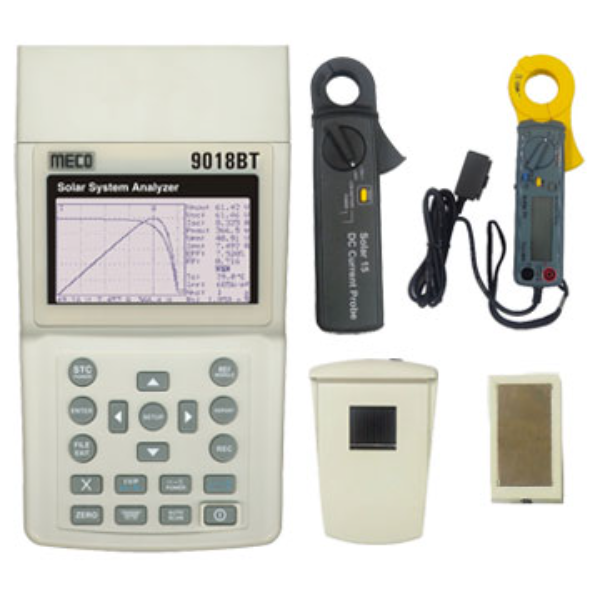

MECO 9018BT SOLAR 15+SOLAR 21 - 1000V, 12A Solar System Analyzer With AC and DC Power Clamp, Thermo and Irradiance Meter With Bluetooth Connectivity


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO 9018BT SOLAR 15+SOLAR 21 - 1000V, 12A Solar System Analyzer With AC and DC Power Clamp, Thermo and Irradiance Meter With Bluetooth Connectivity

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features :
I-V curve test for solar system

  • Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability)
  • The analyser and the Remote Solar Detector is connected by Bluetooth wireless communication (Bluetooth 2.1 + EDR Class 1)
  • The Remote Solar Detector is moisture-proof
  • Intelligent test logic with no personnel attendance required in the field
  • Solar system analyser waits and tests the system until appropriate sunlight irradiance is detected
  • Max. voltage (Vpm) at Pmax, Max. current (Ipm) at Pmax
  • Voltage at open circuit (Voc), Current at short circuit (Isc)
  • Efficiency (Percent) calculation of solar system
  • Temperature measurement of solar panels
  • Irradiance measurement of sun light
  • Series resistance (Rs) calculation of solar panels
  • With data logging/open function, the I-V curves of solar system can be analysed / recorded for a period of time (e.g. 60 min.)
  • Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard
  • Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK or NO OK)
  • Users can set up the parameters of solar panels
  • Users can set up the series number of solar panels. Parameters of many solar panels can be measured in one measurement
  • The Irradiances and Temperatures of solar panels can be continuously measured, monitored and recorded
  • Continuously measure/monitor/record the DC power output of solar system and the AC power output of inverter (1 phase or balanced 3 phases)
  • Calculate the efficiency of DC to AC power conversion and the efficiency of the max.output power
  • Built - in Calender Clock
  • Rechargeable Lithium Battery, Low Battery Warning, AC Power Adaptor
  • Optical USB Cable for PC Communication
  • Solar Connector (optional)
  • With Power Clamps (SOLAR 15 DC Current Probe and SOLAR 21 AC Power Clamp), continuously measure / monitor / record the DC AC Power output of Solar System and the AC Power Output of Inverter (1 phase or balanced 3 phases); calculate the Efficiency of DC to AC Power Conversion and the Efficiency of the max.output power.
Product Specifications

GENERAL

AC Adaptor:
AC 100 to 240V input DC 15V / 1 to 3A output
Accessories:
Solar Irradiance Meter (Remote Solar Detector)x1 Thermometerx1 Usb Power Cordx1 User Manualx1 AC Adaptorx1 Optical Usb Cablex1 Rechargeable Lithium Battery (3400mah)x1 (Installed) Software Cdx1 Software Manualx1 Carrying Bagx1 Thermal Conductive Gelx1 Tes
Battery Details:
Type - Rechargeable Lithium Battery (3400mAh), Life - 400 Times of Linear Scan (1000V - 1V, 0.1A - 12A) 8 hr for Standby Mode
Brand:
MECO
Country of Origin:
India
Dimension:
257x155x57 mm
Manufacturer Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Memory Size:
512K Bytes or 3980 Mod files or 3980 Mod files or 320 REC files or 3980 PWR files or 3980 IRR files
Model:
9018BT SOLAR 15+SOLAR 21
Packers Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Product Type:
Solar Power Meter
Weight:
1525g Grams Battery Inc.
