Buy Meco 9009 - 60V, 12A Solar Module Analyzer/Photovoltaic IV Curve Tester Online

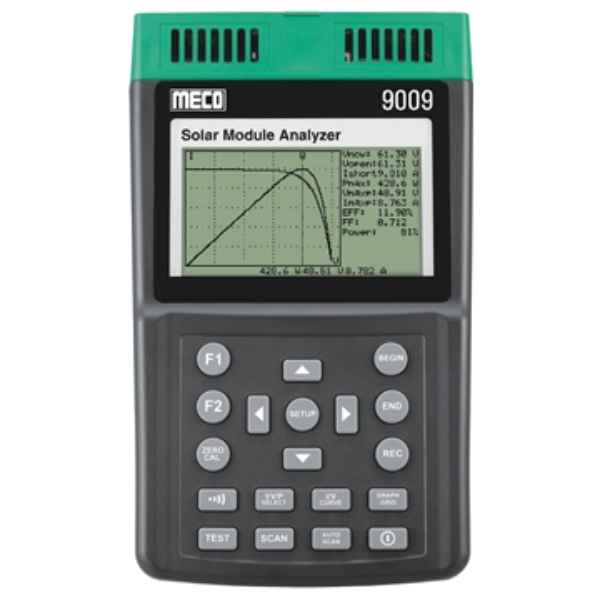

MECO 9009 - 60V, 12A Solar Module Analyzer/Photovoltaic IV Curve Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO 9009 - 60V, 12A Solar Module Analyzer/Photovoltaic IV Curve Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features :

  • I-V Curve Test for Solar Panel / Module / Cell
  • Max. Solar Cell/Module Power / Cell Power(Pmax) search by Auto-Scan
  • Capability: 60V, 12A
  • Best Resolution: 1mV , 1mA
  • Manual Single Point I-V Test
  • Max. Voltage (Vmaxp) at Pmax
  • Max. Current (Imaxp) at Pmax
  • Voltage at Open Circuit (Vopen)
  • Current at Short Circuit (Ishort)
  • I-V Curve with Cursor to Display each Data Point
  • Efficiency (Percentage) Calculation of Solar Panel
  • Real Time data logging
  • RS232C (to USB Bridge) Cable for PC
  • Communicate with PC via USB Cable
  • AC Adaptor and Rechargeable Lithium Battery
  • Memory Size : 100 Records
  • Sampling Time of Data logging : 0 to 99 min
  • Large LCD with Backlight
Product Specifications

GENERAL

AC Adapter:
AC 110V or 220V Input, DC 15V / 3A Output
Accessories:
User manualx1 Software Manualx1 Lithium battery 11.1V (Rechargeable)x1 RS232C (to USB Bridge) Cablex1 Software CDx1, AC Adapterx1 Kelwin Clips(2 clips, banana plugs)x1 set (10 max, 12A for 1 minute)
Applications:
Quality Control at Production Line, Warehouse or Site of Installation, Identify Requirements of Solar Power System,, Maintenance of Solar Panels, Verify the Best Installation Angles of Solar Panels, Research and Development
Brand:
MECO
Country of Origin:
India
DC Current Measurement:
0.01 - 12A
DC Voltage Meter:
0 to 60V
Dimensions:
257x155x57 mm (approx.)
Environment:
5 to 50 Degree C, Less Than or Equal 85 Percent RH (Operating), -20 to 60 Degree C,Less Than or Equal 75 Percent RH (Storage)
Manufacturer Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Model:
9009
Packers Details:
MECO INSTRUMENTS PVT. LTD. , Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai 400710. (INDIA)
Product Type:
Solar Power Meter/Photovoltaic IV Curve Tester
Resolution:
0.00 to 99.99 W/m2: 0.001 W/
Weight:
1160 Grams Battery Inc.
