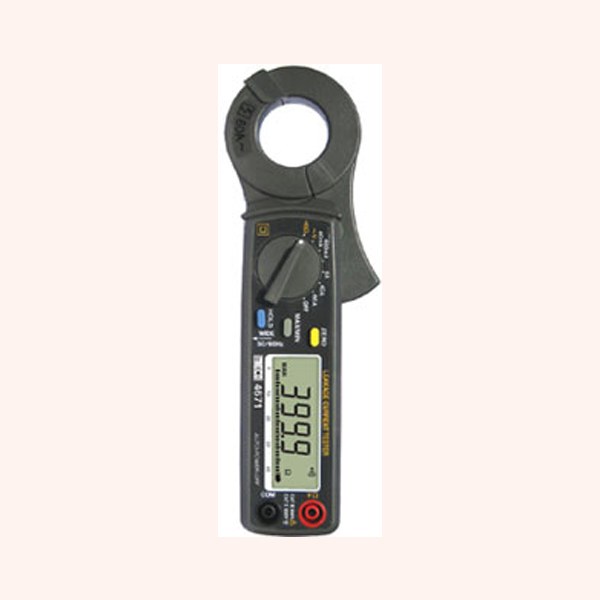

MECO 4671 - 10 mA Resolution, 4000 Counts Leakage Current Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO 4671 - 10 mA Resolution, 4000 Counts Leakage Current Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features :

  • 10µA Ultra High Resolution
  • Large Conductor Diameter (30mm)
  • AC Current in 5 Ranges (40mA, 400mA, 4A, 40A, 60A)
  • Wide Frequency Response (40Hz-1KHz)
  • ACA, ACV, ? and Continuity
  • Large 3¾ Digit LCD (4000 Count)
  • 40 Segment Fast Bargraph Display (20 times/sec.)
  • Data Hold and Max / Min Hold
  • Relative Measurement
  • 600 Vrms Overload Protection in Resistance Range
  • Jaw Opening Cable Dia. 30mm. max.(approx)
  • Display is Manual
  • Low Battery Indication
  • Sampling Time 3 time/sec. (Display) 30 time/sec. (bargraph)
Product Specifications

GENERAL

AC Current In 5 Range:
40 mA, 400 mA, 4A, 40A, 60A
Accessories:
Carrying Case x 1, Users Manual x 1, Battery x 2 (Installed), Test Leads x 1 Pair
Altitude:
up to 2000M
Battery Type:
Two 1.5V SUM - 3
Brand:
MECO
Country of Origin:
India
Dimension:
210x72x36 mm
Display:
3 ¾ LCD with 40 Segment Bargraph (4000 Counts)
Frequency Response:
40 Hz to 1 KHz
High Resolution:
10 MicroA
Jaw Opening:
Cable Dia 30mm. max. (approx.)
Large Conductor Diameter:
30 mm
Model:
4671
Operating temperature:
- 10 to 50 Degree C, RH <85 Percentage
Overload Protection Resistance Range:
600 Vrms
Power Consumption:
15mA (approx.)
Product Type:
Leakage Current Tester
Range Selection:
Manual
Sampling Time:
3 time/sec. (display), 30 time/sec. (bargraph
Storage Environment:
- 20 Degree C to 60 Degree C, RH <75 Percentage
Weight:
210 Grams (approx.) Battery Included
