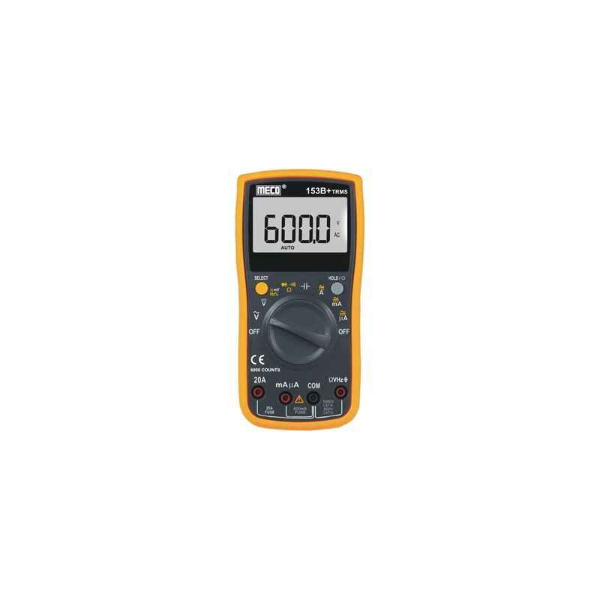

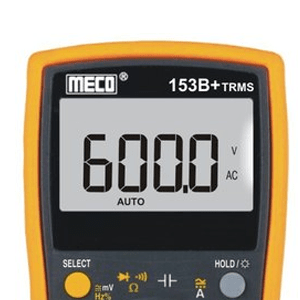

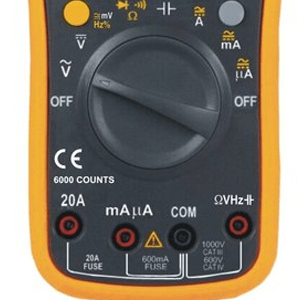

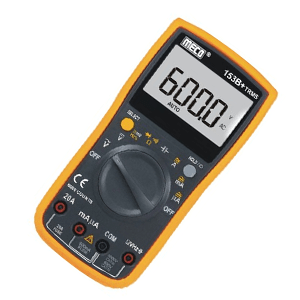

MECO 153B + TRMS - 3 5/6 Digits 6000 Counts Autoranging Digital Multimeter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

MECO 153B + TRMS - 3 5/6 Digits 6000 Counts Autoranging Digital Multimeter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Manufactured by one of the leading brands of Testing and Measuring Equipment, MECO 153B + TRMS, is one of the best electrical instruments suitable for both domestic and industrial use. MECO 3 5/6 Digits 6000 Counts Autoranging Digital Multimeter has 6000 counts display, TRMS, CAT III 1000V, and CAT IV 600 V measuring category. This Electrical Power Testing device has a pre-installed battery, a pair of test leads, instruction manual, and a thermocouple. In addition to that, it is lightweight multimeter and has stored procedures for Diode Test, Audible Continuity, and Data Holding.

Product Attributes:

AC current- 6000 µA / 600 mA / 6 / 20 A
Weight- 370 gms
Measuring Category- CAT III 1000V, CAT IV 600 V
Frequency- 99.99 Hz ~ 20.00 MHz

Benefits:

It can measure high voltage
The upper limit of the frequency if 20 MHz
Has TRMS sensor type
Easy to carry

Product Specifications

GENERAL

AC current:
600 / 6000 µA / 60 / 600 mA / 6 / 20 A
AC voltage:
600 MV / 6 / 60 / 600 /750 v
Accessories:
Test Leads (Pair), Holster, Battery (installed), Instruction Manual & K Type Thermocouple (upto 260°C)
Brand:
MECO
Capacitance:
9.999 / 99.99 / 999.9 nF / 9.999 / 99.99 / 999.9 µF / 9.999 mF
DC current:
600 / 6000 µA / 60 / 600 mA / 6 / 20 A
DC voltage:
600 Mv /6 / 60 / 600 / 1000v
Display Count:
6000 counts
Frequency:
99.99 Hz ~ 20.00 MHz
Measuring Category:
CAT III 1000V, CAT IV 600 V
Model No:
153B + TRMS
Product Type:
Autoranging Digital Multimeter
Resistance:
600 ohm / 6 / 60 / 600 k ohm / 6 / 60 M ohm
Sensing:
TRMS
SP Function:
Diode Test, Audible Continuity, Data Hold
Weight:
370 gms Including Battery (approx)
