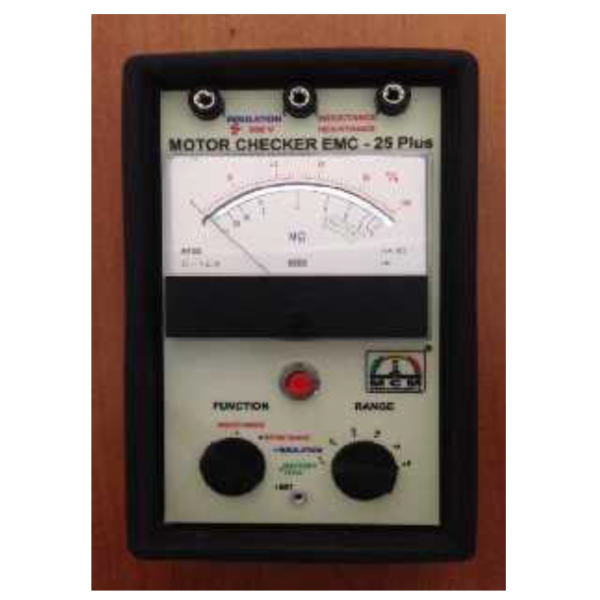

MCM - 0 to 1000 mH Electric Motor Checker is a portable tool useful for checking electrical motors. This checker is used for the speedy and efficient checking of three-phase machines. This 0 to 1000 mH Electric Motor Checker helps immediately detect any electrical faults in electrical equipment. This Electric Motor Checker allows for checking rotor bar problems, inter-turn shorts and also looks for open and loose connections in any coil. The MCM - 0 to 1000 mH Electric Motor Checker weighs around 1000 gms and has an insulation resistance of - 0-20 Megohms at 500 VDC, max. current 0.25mA. The MCM - 0 to 1000 mH Electric Motor Checker has three operating models available for use.
Product specifications:
Insulation Resistance: ± 5%, 0-20 Meg ohms at 500 VDC, max. current 0.25mAResistance ± 2% 0-200 ohms in 6 ranges (0.2Ω ,0.6Ω , 2Ω, 6Ω, 20Ω & 200Ω) F.S.D.
Inductance: ± 2% 0-1000mH in 6 ranges (3mH, 10mH, 30mH, 100mH 300mH & 1000mH F.S.D.)
Power: 1.5V x 6AA size cells or (rechargeable battery operated)
Weight: 1000 gm (Approx.)
Operating temperature(°C): 0 - 55°C
Key Features:
The equipment need not be dismantled
Has three separate operating modes
Easy to use
