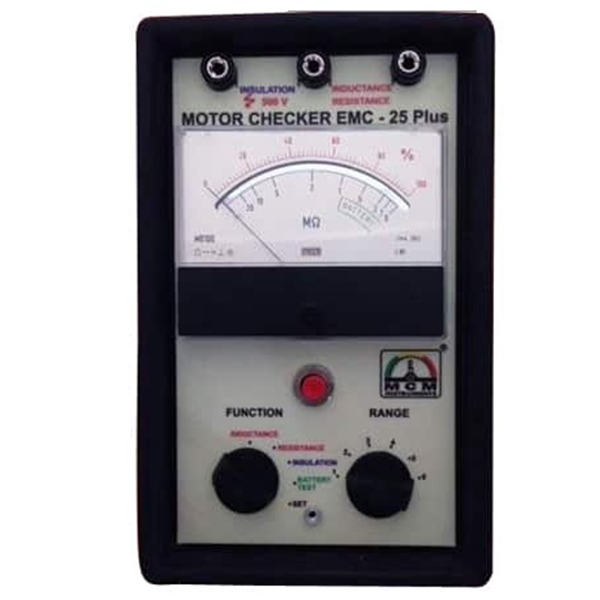

MCM EMC 25Plus - 0 to 25 mA Electric Motor Checker


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
MCM

MCM EMC 25Plus - 0 to 25 mA Electric Motor Checker

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Insulation Resistance Measurement (IR).
  • Identify open and short circuits and loose connections in a winding coil.
  • Identify inter-turn shorts.
  • Detect rotor bar problems without dismounting the rotor.
  • Inductance of the winding with respect to different positions for a rotor for detecting blow holes or cracks in the rotor bars.
  • Simple operation, accurate quick assessment of motor condition.
Product Specifications

GENERAL

Brand:
MCM
Current:
0.25 mA
Dimensions:
210x125x65 mm
Inductance Accuracy:
+/- 2 percent
Inductance Range:
0 to 1000 mH
Insulation Resistance Accuracy:
+/- 5 percent
Model:
EMC-25Plus
Power:
1.5 Vx6 AA Battery
Product:
Electric Motor Checker
Resistance Accuracy:
+/- 2 percent
Resistance Range:
0 to 200 ohm
Temperature Range:
0 to 55 Deg C
Weight:
1000 grams
