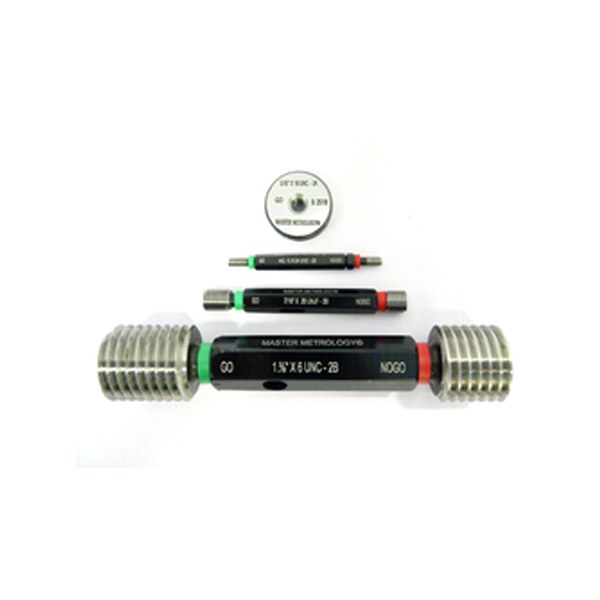

Master Metrology - 7/16 inch dia is a unified thread gauge that is used in the aerospace industry. The brand Master Metrology manufactures this Unified Thread Plug Gauge. This 20 UNF Class 2B Unified Thread Plug Gauge is used to check the tolerance of the thread and its pitch diameter. The class of a gauge determines its tolerance level. This Class 2B Unified Thread Plug Gauge is about 7/ 16 inches in dimension. This particular thread Plug Gauge, belongs to class 2B and provides specific calibration.
Product specification:
Brand: Master Metrology
Class: 2B
Size: 7/16 inch diameter
Product: Unified Thread Plug Gauge
Thread Type: Unified Plug Thread
Hand Type: Right Hand
Pitch: 20 UNF
Key features:
Belongs to class 2B and has specific calibration.
Used to check the tolerance of the thread and its pitch diameter
