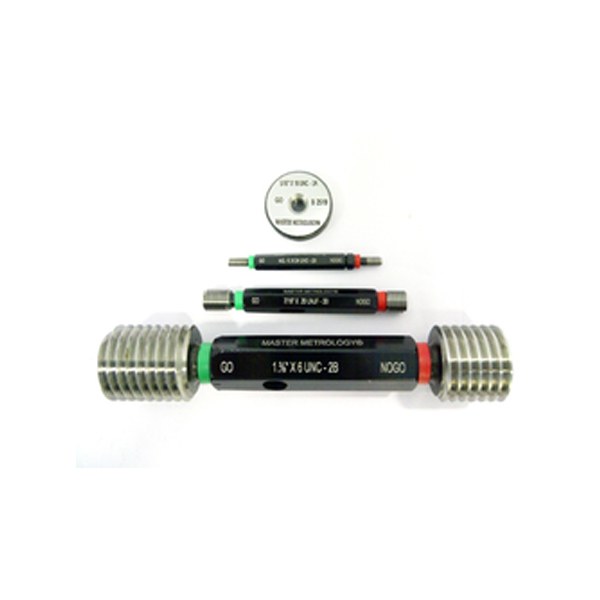

The Master Metrology - 1.1/4 inch dia, 7 UNC Class 2B Unified Thread Plug Gauge is a gauge used to measure the pitch diameter and inside major diameter limits on the threaded parts. According to certain specifications, the 1.1/4 inch dia, 7 UNC Class 2B Unified Thread Plug Gauge, can check the tolerances of the threaded parts. The Class 2B Unified Thread Plug Gauge is a highly specific calibration tool used to ensure the mating parts assembly and provide the highest quality control it can offer. The Unified Thread Plug Gauge contains two ends, one is GO, and the other is NO GO. The GO end present in the Threaded Plug Gauge must be screwed in while NO GO end will not.
Product Specifications:
Brand: Master Metrology
Product: Unified Thread Plug Gauge
Size: 1.1/4 inch diameter
Thread Type: Unified Plug Thread
Class: 2B
Hand Type: Right Hand
Pitch: 7 UNC
Key Features:
Flexible hole location
Maximum wearability
Good accuracy
