Buy Lutron RGB 1002 - 0 to 1023 Value Colour Analyzer Online
Lutron

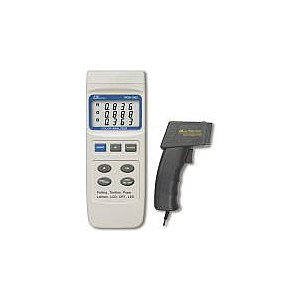

Lutron RGB 1002 - 0 to 1023 Value Colour Analyzer


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Lutron

Lutron RGB 1002 - 0 to 1023 Value Colour Analyzer

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The RGB-1002 is a portable color analyzer equipped with an external sensor probe having a 45 degree/0 degree color measuring geometry. The modem, accurate microprocessor technology uses the spectral analysis method to determine the color of the sample. Excellent repeatability due to spectroscopic analysis technique used.
  • Friendly operation, just press the operation button will get the color value (R, G, B or H, S, L)
  • Relative function, can easy to compare the color value of the different two measurement material.
  • The RGB-1002 is designed mainly for measuring the color of no lighting sample such as textiles, paper.
  • leathers, painting materials etc It is the useful tool for the quality control and the wide industrial application.
  • The color analyzer also can measure the reference lighting sample color value such as CRT, LCD monitor, LED lamp, lighting lamp.
  • For no lighting sample color measurement, a defined light source illuminates the sample and the reflected.
  • Surface light is spectrometrically analyzed.
  • For lighting sample color measurement, the light source of sample is spectrometrically analyzed directly.
  • RS232 computer interface, can store the measuring color value in the computer for recording and the further color analysis.
  • Build in CAL (Calibration) button, for no lighting sample measurement, use the included white color calibration card to make the self calibration easily.
  • Hand held housing case, easy to carryout.
  • Power supply by 006P DC 9V battery or DC 9V adapter.

Applications:

  • To check the color value of textiles, paper, leathers, painting materials.
  • The objective quality control of color during production.
  • The color measurement and recording of products supplied by supplier to check for conformity specification.
  • The comparison of color samples against color standard.
  • The interpretation and statistic evaluation of color sample measurement.
  • To check the reference color value of CRT monitor, LCD monitor, light lamp.
Product Specifications

GENERAL

Battery Type:
DC 9V Battery Alkaline type
Brand:
Lutron
Colour Sensors:
Red, Green, Blue
Contact Spectral Range:
400 nm to 700 nm
Dimensions:
203x76x38 mm
LCD Display Size:
59x34 mm
Model:
RGB 1002
Operating temperature:
50 degree celsius
Resolution:
0.1 RPM
RGB Measurement Value:
0 to 1023 Value
Weight:
478 grams
