Buy Lutron DW 6095SD - 3 Phase Power Analyser with Harmonic Measurement Online

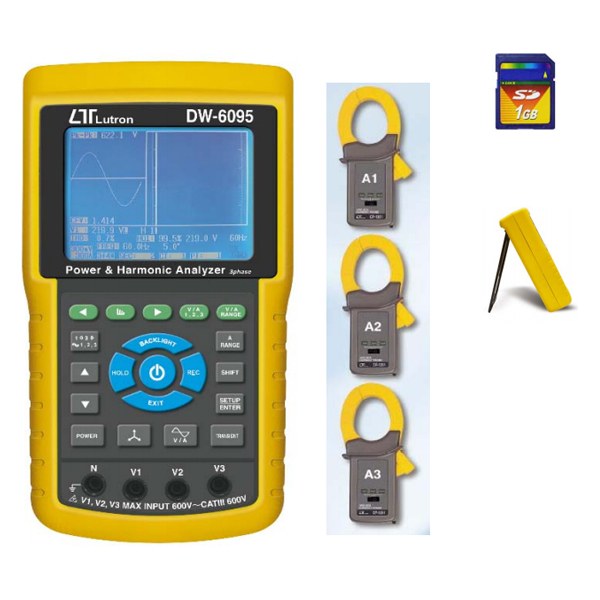

Lutron DW 6095SD - 3 Phase Power Analyser with Harmonic Measurement


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lutron DW 6095SD - 3 Phase Power Analyser with Harmonic Measurement

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W.
  • 3 current probes (CP-1201) are included, if change the current probes, the calibration procedures are not necessary.
  • Simultaneous display of Harmonics and Wave form.
  • Display of Waveform with Peak Values.
  • Analysis of Total Harmonic Distortion.
  • Graphic Phase diagram with 3-Phase system parameters.
  • 3 phase Voltage or Current Unbalanced Ratio (VUR, AUR) and Unbalanced Factor.
  • Calculated Unbalanced Current through Neutral Line (An)
  • Capture Transient events (including Dip, Swell and Outage) with programmable threshold (%)
  • Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)
  • ACV input impedance is 10 Mega ohms.
  • Safety Standard: IEC 1010, CAT III 600V.
  • Powered by AA (UM-3) DC 1.5 V X 8 batteries (Alkaline type) or DC 9V adapter.
  • Computer data output, can co-operate with optional USB Cable/USB-01, RS232 cable/UPCB-02 and Data Acquisition software, SW-811.
Product Specifications

GENERAL

Battery Type:
DC 1.5V Battery AA 8 Nos Heavy duty or Alkaline type
Brand:
Lutron
Dimensions:
225x125x64 mm
LCD Display Size:
81.4x61 mm
Measuring Range:
10 to 600 ACV
Model:
DW 6095SD
Operating temperature:
50 degree celsius
Weight:
1010 grams
