Buy Lutron DL 9954 - AC 4 V to 600 V ACA Auto Range Leakage Tester Online

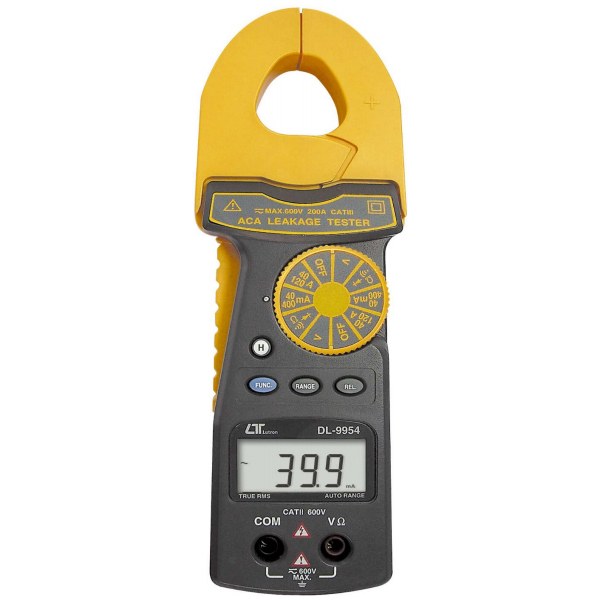

Lutron DL 9954 - AC 4 V to 600 V ACA Auto Range Leakage Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lutron DL 9954 - AC 4 V to 600 V ACA Auto Range Leakage Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • High precision AC mA measurement, it is useful for AC mA leakage current measurement.
  • Measure AC mA on the inductive conductor.
  • Design meet IEC 1010 CATIII 600V safety requirement.
  • 4000 counts, auto range and multi-functions.
  • Measurement for ACA, ACV, DCV, Ohms, Diode, Continuity beeper.
  • True RMS measuring reading for ACV and ACA function.
  • Two AC leakage current range: 40 mA, 400 mA.
  • Two AC current range: 40 A, 120 A.
  • Data hold.
  • Relative measurement.
  • Crystal time base, high quality.
  • LCD display allows clear readout-out even at high ambient light level.
  • LSI circuit provides high reliability and durability.
  • Overload protection circuit is provided for all range.
  • Compact and heavy duty ABS housing fire proof plastic case.
Product Specifications

GENERAL

Battery Type:
1.5V AA Battery 2 Nos
Brand:
Lutron
Counts:
4000 Counts
Dimensions:
191x64.5x36.1 mm
Display:
3.1/2 Digit
Jaw Diameter:
22.3 mm, 0.88 inch
LCD Display Size:
10.8 mm
Model:
DL 9954
Operating temperature:
50 degree celsius
Rated Current Range:
40 mA to 400 mA, 40 A to 120 A
Sampling Time:
0.35 second
Voltage range:
DC- 400 mV, AC- 4 V to 600 V
Weight:
251 grams
