Buy Lubi W95/16 - 100 HP 8 inch Stainless Steel Mixed Flow 50Hz Submersible Bore Well Pump Online

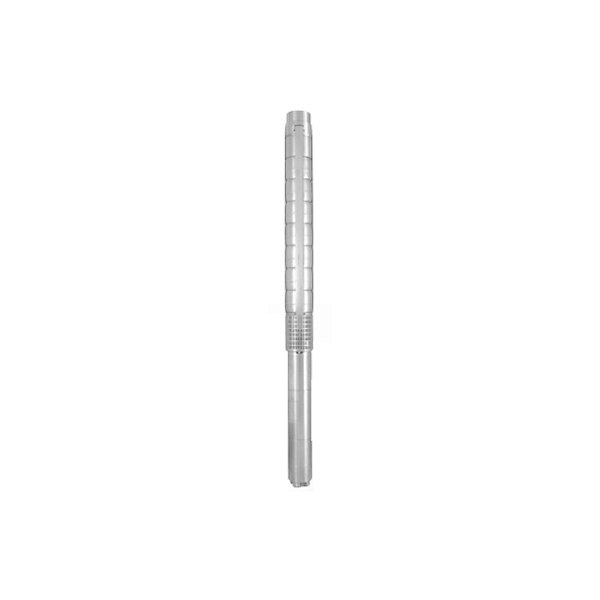

Lubi W95/16 - 100 HP 8 inch Stainless Steel Mixed Flow 50Hz Submersible Bore Well Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi W95/16 - 100 HP 8 inch Stainless Steel Mixed Flow 50Hz Submersible Bore Well Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Submersible motor and pumps for deep wells of 8 inch (DN 200).
  • Sized for connection to the motor according to NEMA standards.
  • Delivery casing with built in non-return valve.
  • All standard pumps are completely manufactured out of stainless steel AISI 304 metal sheet.
  • Mixed Flow Impellers- W77, W95.
  • Connection- Screwed pipe connection with BSP thread as standard.
  • Area of Application- Water Supply, Irrigation, Civil, Industrial, Fire fighting.
  • Max Flow Range- 123.8 m3/h.
  • Max Head Range- 423 meters.
  • Liquid temperature- 0 degree to +45 degree C.
  • Max sand content into the water 50 g/m3.
  • Max starts per hour- 20 at regular intervals.
  • Direction of rotation- Clockwise as seen from the pump coupling side.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 100 HP:
342 M: 0 LPM, 330 M: 333 LPM, 296 M: 667 LPM, 244 M: 1167 LPM, 210 M: 1500 LPM, 100 M: 2063 LPM
Max RPM:
2900 RPM
Model:
W95/16
Motor Type:
Water Filled- L85100-H
Power:
100 HP, 75 kW
Size:
8 inch
