Buy Lubi W2A/40 - 3 HP 4 inch Stainless Steel 50Hz Submersible Bore Well Pump Online

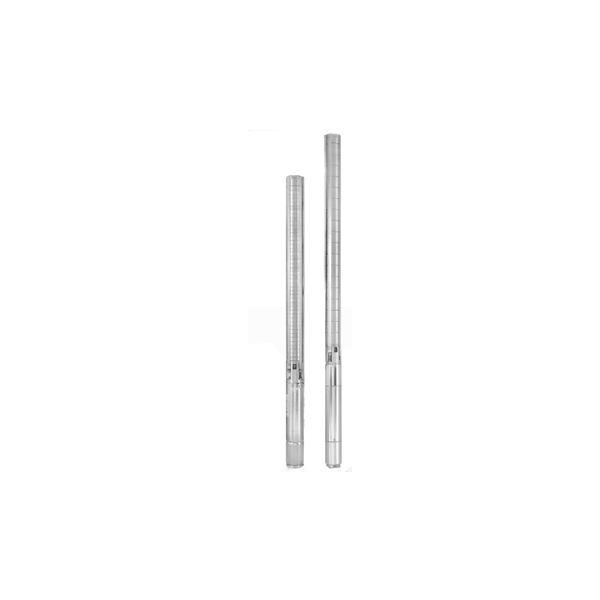

Lubi W2A/40 - 3 HP 4 inch Stainless Steel 50Hz Submersible Bore Well Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi W2A/40 - 3 HP 4 inch Stainless Steel 50Hz Submersible Bore Well Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Submersible motor and pumps for deep wells of 4 inch (DN 100 mm).
  • Sized for connection to the motor according to NEMA standards.
  • Delivery casing with built in non-return valve.
  • All standard pumps are completely manufactured out of stainless steel AISI 304 sheet metal.
  • Impellers: Radial Flow Impellers: W1A, W2A, W3A, W5A, Mixed Flow Impellers: W8A, W14A.
  • Connection: Screwed pipe connection with BSP thread as standard.
  • Flow range: Max 18.8 m3/h.
  • Head range: 547 M.
  • Liquid temperature: 0 deg C to +45 deg C.
  • Max. sand content into water 50 g/m3.
  • Max starts per hour: 30 at regular intervals.
  • Direction of rotation: Clockwise as seen from the pump coupling side.

Area of Application:

  • Water Supply.
  • Irrigation.
  • Civil.
  • Industrial.
  • Fire fighting.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 3 HP:
245 M: 0 LPM, 239 M: 6.7 LPM, 213 M: 20 LPM, 190 M: 27 LPM, 158 M: 33 LPM, 62 M: 45 LPM
Max RPM:
2900 RPM
Model:
W2A/40
Motor Type:
Oil Filled- H4530, Water Filled- H4530
Power:
3 HP, 2.20 kW
Size:
4 inch
