Buy Lubi W17/35 - 30 HP 6 inch Stainless Steel Mixed Flow 50Hz Submersible Bore Well Pump Online

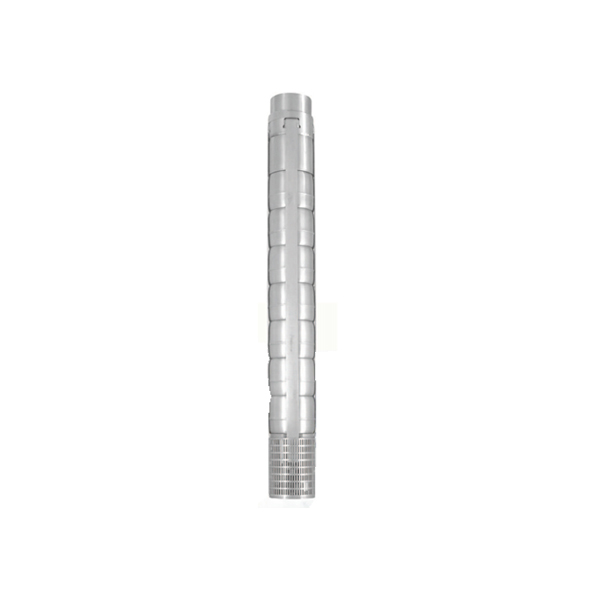

Lubi W17/35 - 30 HP 6 inch Stainless Steel Mixed Flow 50Hz Submersible Bore Well Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi W17/35 - 30 HP 6 inch Stainless Steel Mixed Flow 50Hz Submersible Bore Well Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Submersible motor and pumps for deep wells of 6 inch (DN 150 mm).
  • Sized for connection to the motor according to NEMA standards.
  • Delivering casing with built in non return valve.
  • All standard pumps are completely manufactured out of stainless steel AISI 304 sheet metal.
  • Radial flow impellers- J6, J9, J12, J17, J17A, J20, J24, J13H, J16H, J18H.
  • Mixed flow impellers- W17, W30, W46, W60.
  • Connection- Screwed pipe connection with BSP thread as standard.
  • Area of Applications- Water supply, Irrigation, Civil, Industrial, Fire fighting.
  • Performance range- Flow range: Max 78 m3/h.
  • Head range- Max 750 meters.
  • Direction of rotation- Clockwise as seen from the pump coupling side.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 30 HP:
393 M: 0 LPM, 391 M: 67 LPM, 380 M: 133 LPM, 350 M: 200 LPM, 299 M: 267 LPM, 228 M: 333 LPM, 183 M: 369 LPM
Max RPM:
2900 RPM
Model:
W17/35
Motor Type:
Water Filled- L6530-KP
Power:
30 HP, 22 kW
Size:
6 inch
