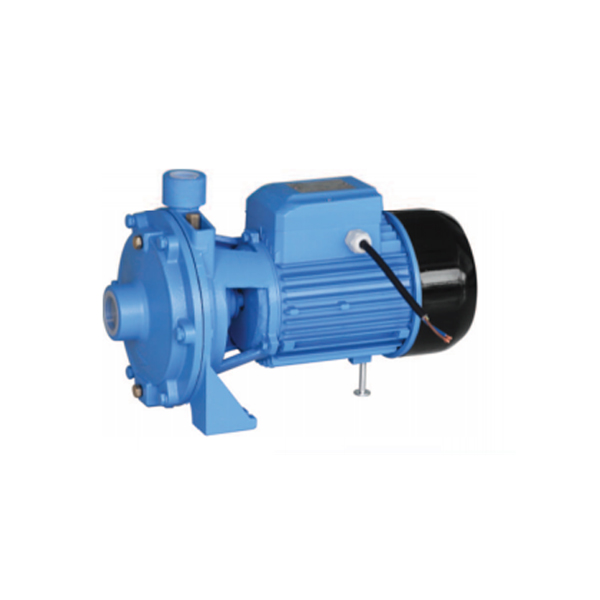

Lubi VMT 200 - 2 HP, 50Hz VMT Series Two Stage Centrifugal Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi VMT 200 - 2 HP, 50Hz VMT Series Two Stage Centrifugal Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The VMT pumps are non self priming, horizontal, two stage centrifugal pumps.
  • Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
  • The pump is fitted with a maintenance free, mechanical shaft seal.
  • The pumps have axial suction port and radial discharge port.

Operating Conditions:

  • Liquid temperature upto 90 degree C.
  • Ambient temperature upto 40 degree C.
  • Total suction lift up to 7 M.
  • Continous duty.

Motor:

  • 2 Pole induction motor, 50Hz (n=2900 RPM)
  • Single phase 230V +5% -15% with thermal protection.
  • Insulation Class B.
  • Protection IP 44.
  • Constructed in accordance with IEC 34.
  • Direction of Rotation- Clockwise as seen from the motor rear end.
Product Specifications

GENERAL

Area of Application:
For Water supply, Heating, Cooling, Air conditioning and Circulation Plants, For Civil and Industrial applications, As Pressure boosting pumps for central water systems, For Irrigation, For Circulation Plants, For Washing with a Jet of Water
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 2 HP:
12 M: 7800 LPH, 14 M: 7500 LPH, 16 M: 7200 LPH, 18 M: 6600 LPH, 20 M: 6300 LPH, 22 M: 5700 LPH, 24 M: 5400 LPH, 26 M: 4800 LPH, 28 M: 4200 LPH, 30 M: 3600 LPH, 32 M: 3000 LPH, 34 M: 2400 LPH, 36 M: 1800 LPH, 38 M: 1200 LPH
Max RPM:
2900 RPM
Model:
VMT 200
Number of Stages:
Two Stage
Phase:
Single
Pipe Length:
32x25 mm
Power:
2 HP, 1.5 kW
Series:
VMT Series
Voltage:
230 V
