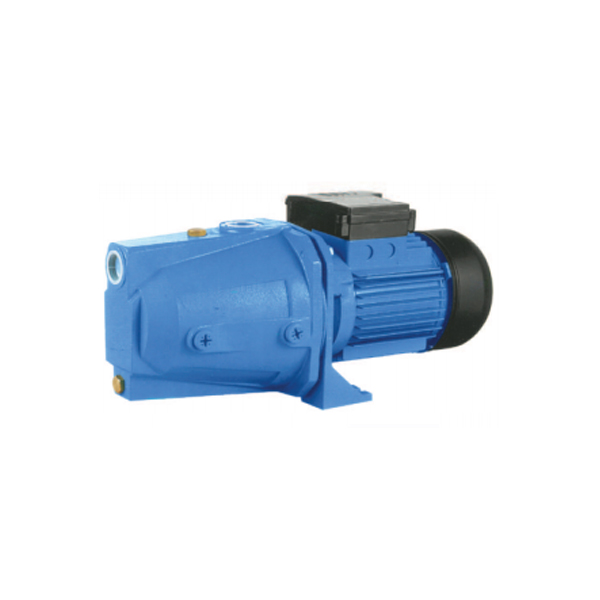

Lubi VMJ150DC - 1.50 HP, 50Hz VMJ Series Single Stage Self Priming Jet Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi VMJ150DC - 1.50 HP, 50Hz VMJ Series Single Stage Self Priming Jet Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The VMJ pumps are non self priming, horizontal, single stage centrifugal jet pumps.
  • Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
  • The pump is fitted with a maintenance free, mechanical shaft seal.
  • The pumps have axial suction port and radial discharge port.

Operating Conditions:

  • Liquid temperature upto 90 degree C.
  • Ambient temperature upto 50 degree C.
  • Total suction lift up to 9 M.
  • Continous duty.

Motor:

  • 2 Pole induction motor, 50Hz (n=2900 RPM)
  • Single phase 230V +5% -15% with thermal protection.
  • Insulation Class B.
  • Protection IP 44.
  • Constructed in accordance with IEC 34.
  • Direction of Rotation- Clockwise as seen from the motor rear end.
Product Specifications

GENERAL

Area of Application:
For Water supply, Heating, Cooling, Air conditioning and Circulation Plants, As pressure boosting pumps for central water systems, As Pressure boosting pumps for central water systems, For watering gardens, For Circulation Plants, For Washing with a Jet o
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 1.50 HP:
41 M: 30 LPM, 36.9 M: 40 LPM, 33 M: 50 LPM, 30 M: 60 LPM, 27.5 M: 70 LPM, 25.5 M: 80 LPM, 24 M: 90 LPM, 23 M: 100 LPM, 22 M: 110 LPM, 21 M: 120 LPM
Max RPM:
2900 RPM
Model:
VMJ150DC
Number of Stages:
Single Stage
Phase:
Single
Pipe Length:
32x25 mm
Power:
1.50 HP, 1.10 kW
Series:
VMJ Series
Voltage:
230 V
