Buy Lubi MXF 151 - 1.5 HP, 50Hz MXF Series Single Stage Centrifugal Pump Online

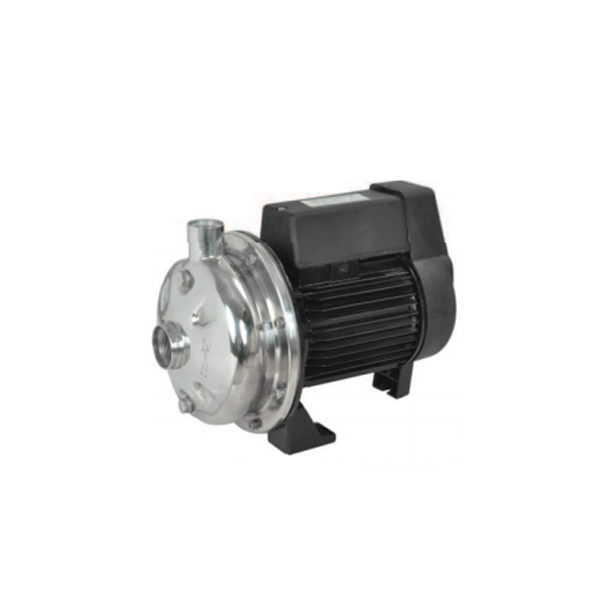

Lubi MXF 151 - 1.5 HP, 50Hz MXF Series Single Stage Centrifugal Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi MXF 151 - 1.5 HP, 50Hz MXF Series Single Stage Centrifugal Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The MXF pumps are non self priming, horizontal, single stage, centrifugal pumps.
  • Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
  • The pump is fitted with a maintenance free, mechanical shaft seal.
  • The pumps have suction port above pump axis and radial discharge port.

Operating Conditions:

  • Flow range upto 15.6 m3/h
  • Head range upto 61 meters
  • Ambient temperature Max +50 degree C
  • Liquid temperature range 0 degree C to +90 degree C
  • Total suction lift max 7.5 meters.
  • Continuous duty rating

Motor:

  • The pump is fitted with a Totally enclosed Fan Cooled, 2 Pole induction motor with principal dimensions in accordance with IEC 60034 standards.
  • Enclosure Class IP 44.
  • Single phase motors have built in thermal overload protection.
  • Direction of rotation- Clockwise as seen from the motor rear end.
Product Specifications

GENERAL

Area of Application:
For suitable liquids which are thin, clean, non explosive, non aggressive, not containing solid particles or fibres, For water supply systems, As pressure boosting pump for central water systems with low pressure, For civil and industrial applications, Fo
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 1.5 HP:
33 M: 20 LPM, 32 M: 40 LPM, 31 M: 60 LPM, 30 M: 80 LPM, 28.5 M: 100 LPM, 27 M: 120 LPM
Max RPM:
2900 RPM
Model:
MXF 151
Number of Stages:
Single Stage
Phase:
Single
Pipe Length:
32x25 mm
Power:
1.5 HP, 1.1 kW
Series:
MXF Series
Voltage:
230 V
