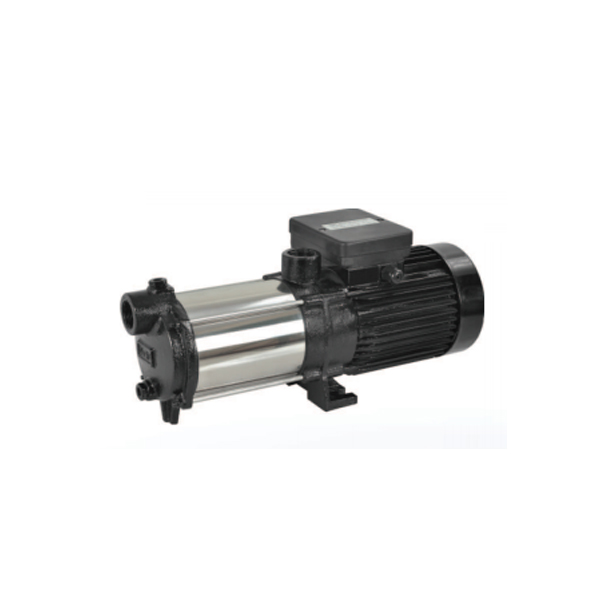

Lubi MFHC 101 DD - 1 HP, 50Hz MFHC Series Multi Stage Centrifugal Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi MFHC 101 DD - 1 HP, 50Hz MFHC Series Multi Stage Centrifugal Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The MHFC pumps are non self priming, horizontal, multistage, centrifugal pumps.
  • Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
  • The pump is fitted with a maintenance free, mechanical shaft seal.
  • The pumps have suction port above pump axis and radial discharge port.

Operating Conditions:

  • Flow range upto 10.5 m3/h
  • Head range upto 67 meters
  • Ambient temperature Max +50 degree C
  • Liquid temperature range 0 degree C to +90 degree C
  • Total suction lift max 9 meters.
  • Continuous duty rating

Motor:

  • The pump is fitted with a Totally enclosed Fan Cooled, 2 Pole induction motor with principal dimensions in accordance with IEC 60034 standards.
  • Enclosure Class IP 44.
  • Single phase motors have built in thermal overload protection.
  • Direction of rotation- Clockwise as seen from the motor rear end.
Product Specifications

GENERAL

Area of Application:
For suitable liquids which are thin, clean, non explosive, non aggressive, not containing solid particles or fibres, For water supply systems, As pressure boosting pump for central water systems with low pressure, For civil and industrial applications, Fo
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 1 HP:
40 M: 0 LPM, 39 M: 17 LPM, 37 M: 33 LPM, 35 M: 50 LPM, 31 M: 75 LPM, 26 M: 100 LPM, 20 M: 125 LPM, 13 M: 150 LPM, 6 M: 175 LPM
Max RPM:
2900 RPM
Model:
MFHC 101 DD
Number of Stages:
Multi Stage
Phase:
Single
Pipe Length:
32x32 mm
Power:
1 HP, 0.75 kW
Series:
MFHC Series
Voltage:
230 V
