Buy Lubi MDH 33 - 1.5 HP Single Phase B Class Insulation Centrifugal Monoblock Pumpset Online

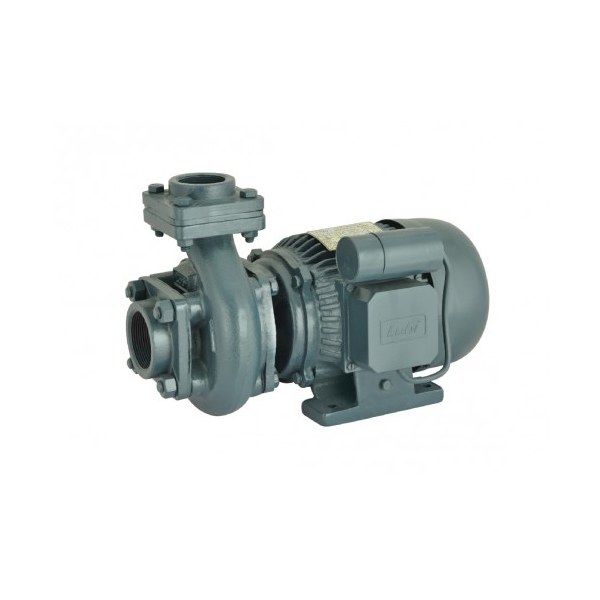

Lubi MDH 33 - 1.5 HP Single Phase B Class Insulation Centrifugal Monoblock Pumpset


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi MDH 33 - 1.5 HP Single Phase B Class Insulation Centrifugal Monoblock Pumpset

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Lubi brand single phase Monoblock pumpsets are manufactured in reference to IS: 9079 and motor with reference IS: 996 and IEC 34-1.

Features:

  • The laminations are non-oriented silicon steel and confirms to IS-648.
  • Motor windings are vacuum imregnated with synthetic varnish for better moisture resistance.
  • Superior mechanical shaft seal for longer life and effective sealing against water leakage.
  • The electric rotor is pressure die cast and uses electric grade aluminium.
  • Grease lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.
  • Better insulating materials are used so that pumpset can with stand high temperature rise.
  • All components are manufactured from materials as per standard specification.
  • The motor is totally enclosed and fan cooled (TEFC)
  • Class B insulation is used.
  • The stainless steel shaft is ground finished.
  • The motors are of the Run capacitor design giving high starting torque.
  • 2 pole induction motor.
Product Specifications

GENERAL

Area of Application:
Residential bungalows, Community water supply, Construction site, Apartment, Small farms, Lawns and gardens, Car washing, Sprinklers, Hotels and Hospitals
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 1.5 HP:
8 M: 550 LPM, 10 M: 500 LPM, 12 M: 460 LPM, 14 M: 420 LPM, 16 M: 310 LPM
Insulation Class:
B Class Insulation
Max RPM:
2880 RPM
Model:
MDH-33
Number of Phase:
Single
Power:
1.5 HP, 1.1 kW
Rated Voltage:
230 V (+- 10%)
Size:
65x50 mm
