Buy Lubi MDH 27N - 0.5 HP, 50Hz MDH Series Single Stage Self Priming Monoblock Pump Online

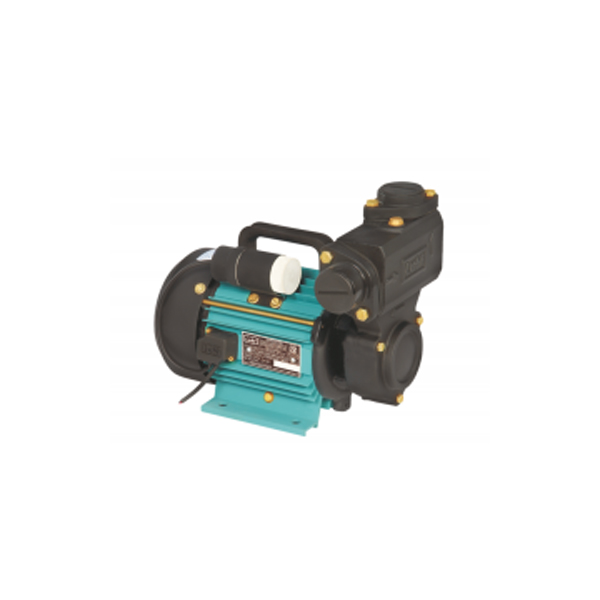

Lubi MDH 27N - 0.5 HP, 50Hz MDH Series Single Stage Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi MDH 27N - 0.5 HP, 50Hz MDH Series Single Stage Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The MDH pumps are self priming, horizontal, single stage monoblock pumps.
  • Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
  • The pump is fitted with a maintenance free, mechanical shaft seal.
  • The pumps have axial suction port and radial discharge port.

Operating Conditions:

  • Liquid temperature upto 90 degree C.
  • Ambient temperature upto 40 degree C.
  • Total suction lift up to 9 M.
  • Continous duty.

Motor:

  • 2 Pole induction motor, 50Hz (n=2900 RPM)
  • Single phase 230V +5% -15% with thermal protection.
  • Insulation Class B.
  • Protection IP 44.
  • Constructed in accordance with IEC 34.
  • Direction of Rotation- Clockwise as seen from the motor rear end.
Product Specifications

GENERAL

Area of Application:
For Garden, Bungalows, Sprinkler, Hotels
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 0.5 HP:
4 M: 2700 LPH, 10 M: 2300 LPH, 16 M: 1800 LPH, 22 M: 1300 LPH, 28 M: 850 LPH
Max RPM:
2900 RPM
Model:
MDH-27N
Number of Stages:
Single Stage
Phase:
Single
Pipe Length:
25x25 mm
Power:
0.5 HP, 0.37 kW
Series:
MDH Series
Voltage:
230 V
